Connect all of your disconnected frontline workers with the WS301 — the right-sized, right-featured, right priced tiniest Android enterprise mobile computer with all the right features for task-oriented workers. With the power of instant push-to-talk voice and data on a wrist or clipped onto an apron, lapel or belt, productivity and workflow efficiency are increased, improving the speed and quality of your customer service.
Powered by Zebra’s Android platform, the WS301 integrates with your devices, supports future versions, and offers enterprise-class flexibility with Mx and OEMConfig.
With Workcloud Sync, the WS301’s voice-first interface enables seamless PTT calls and task updates. Bluetooth 5.3 and NFC make pairing with headsets and printers effortless, ensuring clear communication even in noisy environments
With Zebra Guardian, misplaced WS301 devices are easy to find. A removable 10-hour battery ensures the device is always in service, powering through even the longest shifts.

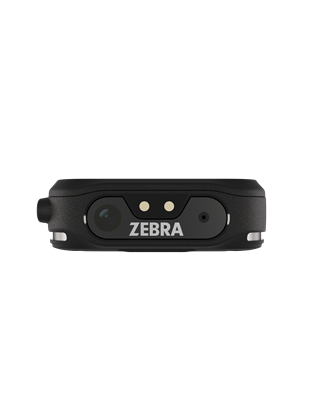

Dual cameras enhance efficiency: a 13 MP top-facing camera for data capture and a 5 MP front-facing camera for barcode lookups, video calls, and seamless task handling.

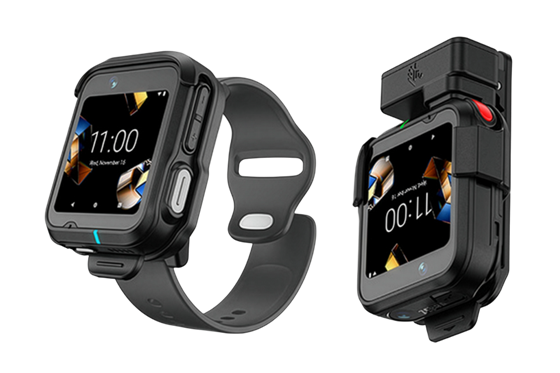

Choose a clip or wrist mount. The AMOLED display is crisp with fast refresh rates, while Wi-Fi 6 and audio/vibration alerts keep workers connected and informed, even in noisy environments
Dimensions
2.20 in (L) × 1.89 in (W) × 0.59 in (D) / 56 × 48 × 15 mm
Dimensions – Device in Clip Mount
3.39 in (L) × 2.09 in (W) × 1.14 in (D) / 86 × 53 × 29 mm
Dimensions – Device in Wrist Mount
2.52 in (L) × 2.05 in (W) × 0.59 in (D) / 64 × 52 × 15 mm
Weight
2.08 oz (59 g)
Weight – Device in Clip Mount
3.07 oz (87 g)
Weight – Device in Wrist Mount (standard strap)
3.10 oz (88 g)
Display
2 in AMOLED color display
460 × 460 resolution
Optically bonded to touch panel
Camera Window
Corning Gorilla Glass
Touch Panel
Capacitive touch
Supports fingertip and gloved use
Corning Gorilla Glass
Power
2.91 Wh
750 mAh battery
PowerPrecision+ technology
Network Connections
USB 3.1 Superspeed (host and client)
WLAN
Bluetooth
Notifications
Audible tones
Charge and OS notification LED
Haptic feedback
Voice and Audio
Speaker rated up to 90 dBA
Two internal microphones with noise and echo cancellation
Bluetooth headset support
3.5 mm PTT headset support (when in clip mount)
Buttons
Programmable multifunction button:
Defaults to PTT when in mount
Defaults to scan trigger when not in mount
Volume up / down buttons
Programmable Duress button
Interfaces
Docking contacts for charging
USB 3.1 Type-C host/client and charging
Wrist: compatible with off-the-shelf 26 mm wrist straps
CPU
Qualcomm QC2290
Operating System
Android 14
Memory
4 GB RAM
64 GB Flash storage
Operating Temperature
+14°F to +122°F (-10°C to +50°C)
Storage Temperature
-40°F to +158°F (-40°C to +70°C)
Humidity
5% to 95% non-condensing
Drop Specification
4 ft (1.21 m) drop to concrete across operating temperature range
Tumble Specification
1,000 tumbles at 1.6 ft (0.5 m), meets or exceeds IEC tumble spec
Sealing
IP65
Vibration
4 g peak sine, 5 Hz to 2 kHz, 1 hour per axis
0.04 g²/Hz random, 20 Hz to 2 kHz, 1 hour per axis
WS301 Wearable Solution, Clip Mount with 3.5mm Headset Support, 4GB/64GB Memory, Front Facing Camera, Side Facing Camera, 750mAh Removable Battery, North America
$1217.57
Shop WS301 Wearable Accessories
SAC-WS3X-6S7-01
WS301 6-Slot Spare Battery Charger, Allows Charging of 6 Spare Batteries. Country Specific Power Supply (PWR-WUA5V45W1xx) and USB-C Cable (CBL-EC5X-USBC3A-01) are all sold separately.
$455.45
BTRY-WS3X-7MA-01
WS301 Spare Battery, 750MAH
$74.52
SG-WS3X-SCRNP5-01
WS301 Screen Protector - 5 pack
$55.00
SG-WS3X-CLPJK-01
WS301 Replacement Clip Mount with 3.5mm Audio Jack
$85.00
SAC-WS3X-30S7-01
WS301 30-Slot Spare Battery Charger, Allows Charging of 30 Spare Batteries. Power Supply (PWR-BGA12V150W1WW) and Country Specific AC Line Cord are all sold separately.
