Bixolon SRP-330III

Images may not reflect the actual product
Product Image
small product image0

SRP-330III

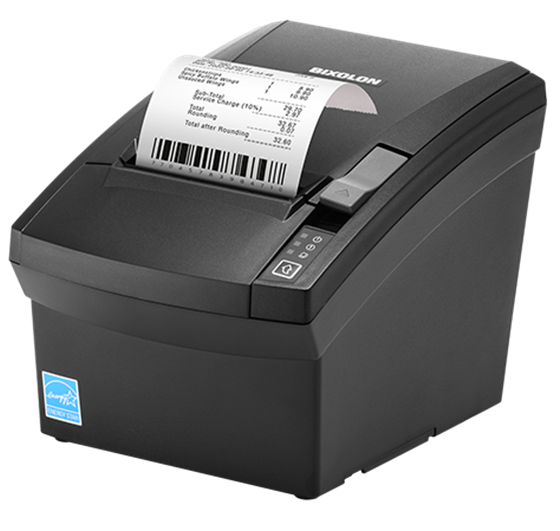

The SRP-330III is an affordable 3-inch (80 mm) thermal POS printer which provides high quality 180 dpi or 203 dpi resolution printing at speed of up to 250 mm/sec, which makes it ideal for retail, hospitality solutions.

Highlights

Reliable Printing Performance
  • Fast printing speeds up to 250 mm/sec
  • Energy Star certified

Features

User-Friendly Design
  • Auto media width switch with 2-inch partition
  • Paper saving mode, reducing the length of a receipt up to 25 %
  • 180 or 203 dpi options
Multiple Interface Choice
  • All in one Plus™ Interface
  • Triple Interface : USB + Ethernet + Serial
  • Dual Interface :
  • USB + Serial
  • USB + Parallel
  • USB + SD
Print Characteristics
  • Print Method: Direct Thermal
  • Print Speed: Up to 250 mm/sec
  • Print Resolution:
    • SRP-330II: 180 dpi
    • SRP-332II: 203 dpi
  • Print Width: Up to 72 mm
  • Sensor: Paper End, Cover Open
Media Characteristics
  • Media Type: Receipt
  • Media Width:
    • 80 mm
    • Optional 58 mm
  • Media Roll Diameter: Up to 80 mm
  • Media Thickness: 0.05 to 0.08 mm
  • Supply Method: Easy Paper Loading
Physical Characteristics
  • Dimensions (W x L x H): 145 x 195 x 146 mm (5.72 x 7.79 x 5.74 inch)
  • Weight: 1.6 kg (3.52 lbs.)
  • Electrical:
    • EnergyStar® Certified
    • External Power Adapter 100–240 VAC, 50/60 Hz
  • Drawer Port: 2 ports (Via Y-Type Adapter)
Performance Characteristics
  • Memory: 128 MB SDRAM, 64 MB Flash
  • NV Image Memory: 768 Kbytes (Mono)
  • Receive Buffer: 4 Kbytes
  • User Define Buffer: 12 Kbytes
  • Interface:
    • USB 2.0 FS + Ethernet + Serial
    • USB 2.0 FS + Serial
    • USB 2.0 FS + Parallel
    • USB 2.0 FS + Dual Serial (KOR Only)
Environment Characteristics
  • Temperature:
    • Operating: 0 to 40°C (32 to 104°F)
    • Storage: −20 to 60°C (−4 to 140°F)
  • Humidity:
    • Operating: 10 to 80% RH
    • Storage: 10 to 90% RH
Software
  • Emulation: BXL/POS™
  • Driver/Utility:
    • Windows® Driver
    • OPOS/JPOS Driver
    • Linux®/macOS® CUPS Driver
    • Virtual COM USB/Ethernet Driver
    • Utility Program
    • Network Auto Installer
  • Developer Tools:
    • Android™/iOS®/Windows SDK
    • Linux SDK
    • Xamarin SDK
    • Web Print SDK (Android/iOS/Windows/macOS)
    • Cordova Plugin
    • MAUI SDK
    • Flutter™ Plugin
    • React Native SDK
  • Design & Print: mPrint App (Android/iOS)
Fonts/Graphics/Symbologies
  • Character Size:
    • Font A: 12 x 24
    • Font B: 9 x 17
    • Font C: 9 x 24
    • KOR, CHN, JPN: 24 x 24
  • Characters per Line:
    • SRP-330III:
      • Font A: 42
      • Font B, C: 56
      • KOR, CHN, JPN: 21
    • SRP-332III:
      • Font A: 48
      • Font B, C: 64
      • KOR, CHN, JPN: 24
Fonts/Graphics/Symbologies
  • Character Sets:
    • Alphanumeric: 95
    • Extended Graphics: 128 x 35 page
    • International: 32
  • Barcode Symbologies:
    • 1D: Coda Bar, Code39, Code93, Code128, EAN-8, EAN-13, ITF, UPC-A, UPC-E
    • 2D: Data Matrix, PDF417, QR Code
Accessories/Supplies
  • Included in the Box:
    • Paper
    • Cable Cover
    • AC/DC Adapter
    • Power Cord
    • 2-inch Partition (58 mm)
    • USB A-B Cable 1.8 m
  • Options & Accessories:
    • External Buzzer
    • B-Melodist
    • Serial Cable (9-9/25-9 pin)
    • Parallel Cable
