Custom America SM600
Description
Specifications
Download

Custom America SM600

Images may not reflect the actual product
Product Image
small product image0
small product image1

SM600 is an omnidirectional presentation scanner for counter-based barcode capture.

Compact and value-focused, the SM600 is designed to handle everyday customer-facing media, including coupons, gift cards, loyalty cards, boarding passes, and event tickets.

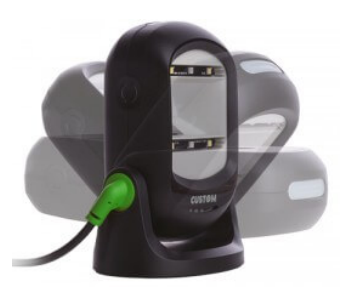

Custom SM600 presentation scanner
1D / 2D
Presentation
USB

Key Specifications

Image Sensor
1280 × 800 pixels
Scan Rate
60 frames per second
Minimum Resolution
3 mil Code 39; 8 mil QR Code
Interface
USB
Protection
IP42; withstands 1.2 m drops to concrete
Reliability
50,000-hour MTBF
Dimensions / Weight
97.89 W × 74.90 D × 137.94 H mm; 315 g

What's in the Box

Custom SM600 presentation scanner with USB interface

Dimensions (W x D x H)
97.89 W x 74.90 D x 137.94 H mm
Weight
315g
Material Type
ABS plastic
Reading Angle
Horizontal -55°, Vertical -35°
Scanner Resolution
1280 (H) x 800 (V) pixels 3.0 mil (Code 39), 8 mil (QR Code)
Scan Speed
60 fps (frame per second)
Pitch Angle
±60°(from front to back)
Skew/Pitch Roll Tolerance
±60°(from plane parallel to symbol (side- to-side) Roll: 360°
Environmental seal
IP42 (dust and water protection)
MTBF
50.000 hours
Drop Resistance
47.24 inches (120 cm) drop on concrete surface
SM600 Spec Sheet
Download

Shop SM600 Models

995ED044100333

SM600 Scanmatic Presentation Scanner, USB

$214.65
