DataLogic PM9501
Description
Specifications
Download

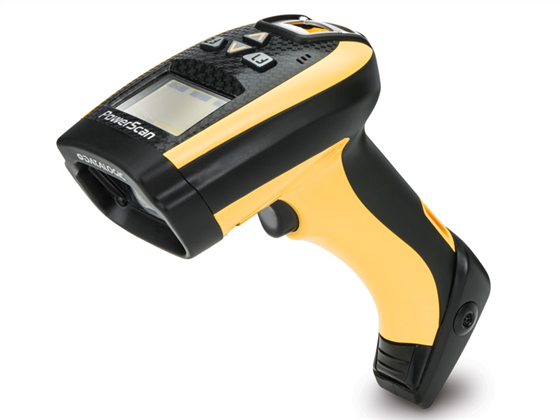

DataLogic PM9501

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2

The PowerScan PM9501 series combines omnidirectional reading capabilities with outstanding optical characteristics. The result is a scanner that is able to read any kind of bar code, regardless of the orientation, from contact to over 1.0 m / 3.3 ft, depending on the bar code resolution. In addition, Datalogic’s latest decoding software guarantees snappy reading in any type of environment

The PM9501 series also offers two display options: 4 configurable keys and a full 16-key keyboard. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications. Models are available without the display as well.

The BC9180 base/charger also includes in one model two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus.

Radio System
Effective Radiated Power: 433 MHz: <10 mW; 910 MHz: <50 mW Point-to-Point Configuration Multi-Point Configuration: Max. Readers per Radio Receiver: 16
Radio Frequency
433 MHz; 910 MHz
Radio Range
433 MHz: 120 m / 393 ft low speed; 50 m / 164 ft high speed 910 MHz: 220 m / 721 ft low speed; Frequency hopping 170 m / 558 ft high speed Seamless Roaming; Two Way Communications
Battery
Lithium-Ion 3350 mAh Charge Time: External Power: 4.5 Hours; Host Power: 10 Hours
Reads Per Charge
Continuous Reading: 60,000+ (typical @ 25 ºC)
Display
ontinuous Reading: 60,000+ (typical @ 25 ºC)
Keypad
PM9501-D: 4 Configurable Keys PM9501-DK: 16 Configurable Keys
Image Sensor
PM9501: 864 x 544; PM9501-HP: 1280 x 1024
Resolution (Max)
PM9501: 1D Codes: 4 mil; 2D Codes: 7.5 mil PM9501-HP: 1D Codes: 2.5 mil; 2D Codes: 4 mil
PM9501 Data Sheet
Download

Shop PM9501 Models

PM9501-DPM910RBK10

PowerScan PM9501, 910 MHz, Direct Part Marking Evo, USB Kit, Removable Battery (Kit inc. Scanner, Base Station BC9030-910, Cable CAB-438, Power Brick 8-0935 and Power Cord 6003-0941.)

$1177.05

PM9501-DDPM910RB

PowerScan PM9501, 910 MHz, Direct Part Marking Evo, 4-Key Display, Removable Battery, Scanner Only

$1025.42

PM9501-DPM910RB

PowerScan PM9501, 910 MHz, Direct Part Marking Evo, Removable Battery, Scanner Only

$889.13

Shop PM9501 Accessories

BC9030-910

BC9030 Base Station/Charger, 910 MHz, Multi-Interface (RS-232, USB and KBD Wedge). Requires Power Brick 8-0935, Power Cord 6003-0941, and Interface Cable

$294.70

8-0935

Power Supply, Requires Line Cord 6003-0941

$19.00

6003-0941

Datalogic Universal Power Power Cord (120VAC, STD)

$15.00

CAB-433

Cable 6 Feet, RS232 9-Pin Female Straight, POT) for the PowerScan

$31.76

CAB-438

Datalogic PowerScan USB Interface Cable

$31.76

RBP-PM91-BK

BATTERY PACK, REMOVABLE, RBP-9001, BLACK

$49.00

STD-P090

Hands Free Stand Powerscan 9501

$28.00

ZSN5PM9551

Powerscan PM9500/PBT9500 Scanner Unit Ease Of Care Agreement, No Comprehensive Coverage, 2-Day Turnaround, 5-Year Plan (Must Be Purchased Within 30 Days of Scanner)

$122.00

ZSC2PD9531

PowerScan 95XXSR Ease Of Care Agreement, Comprehensive, 2 Days Turnaround, 3 Years Plan (Must Be Purchased Within 30 Days of Scanner)

$77.00
