Honeywell PM65

Images may not reflect the actual product
Product Image
small product image0

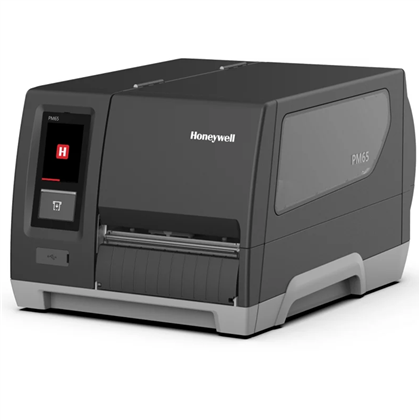

The Honeywell PM65 industrial label printer offers high-quality printing along with remote configuration and diagnostics functionalities that increase production efficiency and supply chain transparency.

Efficiency and reliability of printing operations are essential for successful workflows. Honeywell Printer Edge™ provides centralized management and real-time monitoring of your printer network and may help reduce printer downtime and improve the speed and accuracy of printer operations. With effortless integration, a user-friendly interface, enhanced security, and a single software toolkit, you can keep your operations running smoothly while helping reduce costs and maximize productivity.

The PM65 supports printer remote control, so you can see and control the printers from a remote computer and provide real-time diagnosis and technical support. Print Set MC application enables you to quickly connect and configure the printers from your preferred Android™ device, and optional Honeywell Operational Intelligence enables the printers with the capability of remote management for issue diagnostics and output performance tracking.

The PM65 is scalable to incorporate RFID, parallel, industrial, and applicator interfaces to address your unpredictable business needs in the future. These printers can support a wide range of media, including ink-in and ink-out ribbons with one-inch core size, enhancing the time between media resupply. The PM65 printer is an easy replacement for existing Honeywell or mixed printers. Rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement help minimize downtime and maintenance needs.

Dimensions (L x W x H):
(19.1 in x 11.5 in x 13.8 in)
Weight
30.2 lbs
Interface Options
Ethernet 10/100 Mbps USB 2.0 Host USB 2.0 Device RS-232, up to 115.2 KB/s
Max Print Speed
At 203/300 dpi: 167.4 mm (6.59 in)
Printer Language
Fingerprint (FP) Direct Protocol (DP) Intermec Printer Language (IPL)3 ZSim2 (ZPL-II), DPL, XML-enabled for SAP® AII and Oracle® WMS, PDF, C#
Barcodes Supported
All major 1D and 2D symbologies are supported
Graphics Printing
Supports PCX, PNG, GIF and BMP file formats. Other formats supported with Label Generation Tools.
Memory
512 MB Flash memory, 256 MB SDRAM, Multi-GB USB memory device (FAT16/FAT22)
Roll Size (max), Core Size
213 mm (8.38 in)
Media Types
Gap, notch, black mark, continous, media low, (rotary hanger option), media end
Print Resolution
At 203 dpi: 8 dots/mm At 300 dpi: 11.8 dots/mm
Paper Dimensions
7 in/2 in
Paper Thickness
3 mil to 10.4 mil
Ribbon
Wax base, mixed base and resin base
Operating Temperature
41°F to 104°F
PM65 Quick Start Guide
Download
PM65 Spec Sheet
Download
PM65 User Manual
Download
Windows 11 Driver
Download

Shop PM65 Models

PM65A11000000201

PM65: Industrial Printer, Thermal Transfer, 203DPI, 6’ label width, Touch Display, USB, Ethernet/Bluetooth/WLAN (N America), Standard Roller, US Power Cord

DPI:

203

Printer Type:

Thermal Transfer

Interface:

USB, Ethernet, Bluetooth, WLAN

$2771.14

PM65A11000030201

PM65: Industrial Printer, Thermal Transfer, 203DPI, 6’ label width, Touch Display, USB, Ethernet/Bluetooth/WLAN (N America), Standard Roller, Rewinder + LTS, US Power Cord

DPI:

203

Cutter Option:

Rewinder + LTS

Printer Type:

Thermal Transfer

Interface:

USB, Ethernet, Bluetooth, WLAN

$3008.23

PM65A11000000301

PM65: Industrial Printer, Thermal Transfer, 300DPI, 6’ label width, Touch Display, USB, Ethernet/Bluetooth/WLAN (N America), Standard Roller, US Power Cord

DPI:

300

Printer Type:

Thermal Transfer

Interface:

USB, Ethernet, Bluetooth, WLAN

$2929.20

PM65A11000030301

PM65: Industrial Printer, Thermal Transfer, 300DPI, 6’ label width, Touch Display, USB, Ethernet/Bluetooth/WLAN (N America), Standard Roller, Rewinder + LTS, US Power Cord

DPI:

300

Cutter Option:

Rewinder + LTS

Printer Type:

Thermal Transfer

Interface:

USB, Ethernet, Bluetooth, WLAN

$3166.30

PM65A10000000200

PM65: Industrial Printer, Thermal Transfer, 203DPI, 6’ label width, Touch Display, Ethernet/USB, Standard Roller, No Power Cord (sold separately)

DPI:

203

Printer Type:

Thermal Transfer

Interface:

USB & Ethernet

$2375.98

Shop PM65 Accessories

PM65-WL-NA

PM65 Wi-Fi Kit includes internal card and antenna, IEEE 802.11 a/b/g/n/ac/ax + V5.2 Bluetooth. Only for USA and Canada

$424.50

PM65-PR

PM65 Platen Roller, Kit

$101.88

PM65-CUTTER

PM65, Cutter

$1373.21

PM65-LD

PM65 Label Dispenser

$212.25

PM65-TPH-203

PM65 Printhead 203 DPI

$594.30

PM65-TPH-300

PM65 Printhead 300 DPI

$764.10

PM65-MR-001

PM65 Internal Rewinder/Peel Off Kit

$184.44

SVCPM65-SG1R

PM65, Repair Service, Gold, (5DAY, 1YR, Renewal)

$183.92

SVCPM65-SG3N

PM65, Repair Service, Gold, (5DAY, 3YR, NEW)

$530.46

SVCPM65-SG5N

PM65, Repair Service, Gold, (5DAY, 5YR, NEW)

$972.51
