Custom America P3L
Description
Specifications
Download

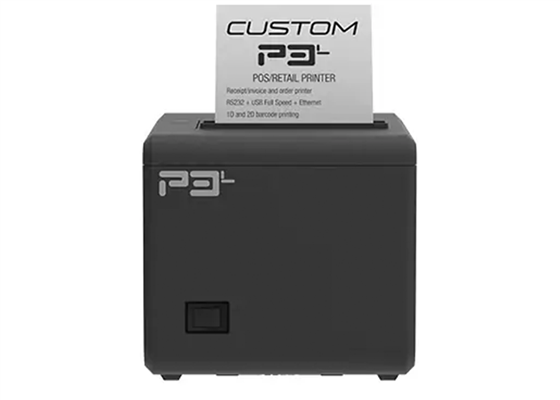

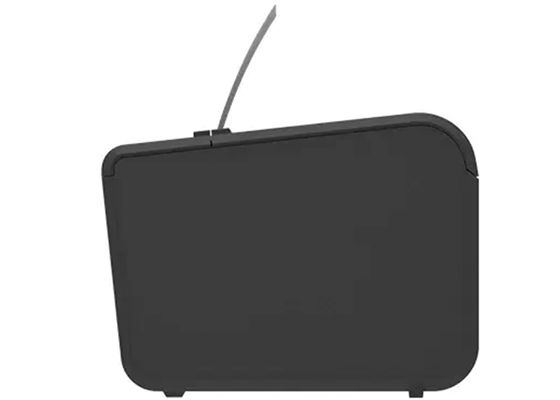

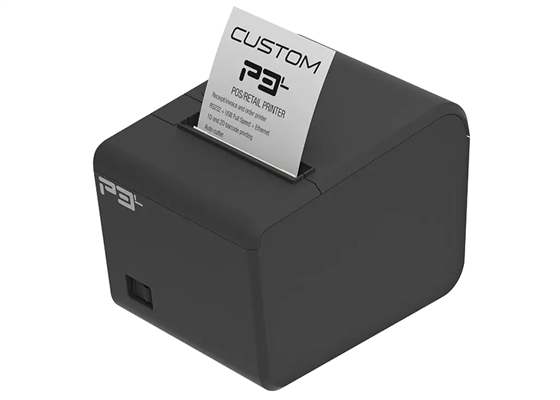

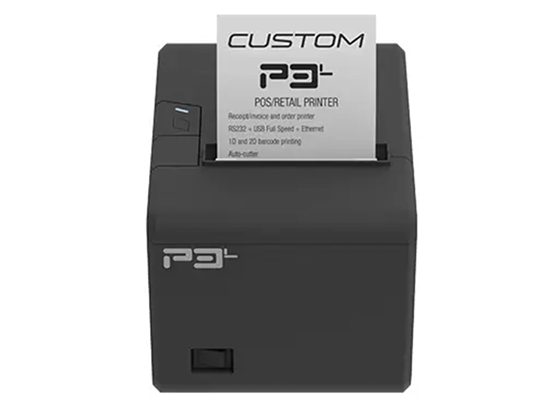

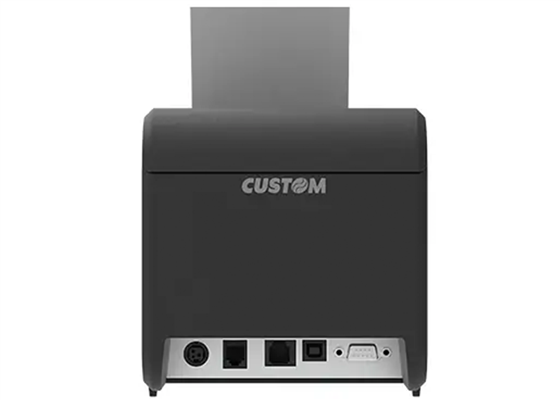

Custom America P3L

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4

The P3L is a cost-effective thermal receipt printer for everyday retail and hospitality checkout counters.

Custom P3L
58 / 80 mm Thermal
200 mm/s
USB • Serial • Ethernet

Key Specifications

Printing Method
Thermal, fixed head
Resolution
203 dpi (8 dots/mm)
Maximum Print Speed
200 mm/s
Paper Width
80 mm; 58 mm with optional reduction guide
Interfaces
USB, RS-232 serial, Ethernet, and cash-drawer port
Platform / Emulation
Windows and Linux drivers; CUSTOM/POS emulation
Rated Life
150 km print head; partial autocutter rated for 1.5 million cuts

What's in the Box

P3L thermal receipt printer

USB interface cable

Serial interface cable

Print Resolution
203 dpi
Print Speed
200mm/s
Printing Method
Thermal printing, fixed head
Number of dots
8 dots / mm
Resolution
203dpi
Printing (mm/sec)
200mm/s
Buzzer
High performance integrated
Auto-cutter
  • Cutter life 1.5 million cuts

  • Partial cut
Printing Direction
Normal, 90°, 180°, 270°
Printing Format
Height and width from 1 to 8, bold, reverse, underlined, italic
Character set
Standard font, Extended Chinese GB18030-2000
Supported Barcode
  • 1D: UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, I25, CODABAR, CODE128, CODE11, MSI

  • 2D: PDF417, QRCODE, DATAMATRIX
Paper width
  • 58mm (with optional paper reduction guide)

  • 80mm
Paper weight
from 55 gr to 80 gr
Sensors
Low paper
Emulation
CUSTOM/POS
Interfaces
  • USB port

  • RS232 serial port

  • Ethernet port

  • Cash drawer port
Drivers
  • Windows® (32/64 bit)

  • Linux (32/64 bit)
Tool software
PrinterTool
Power supply
External 24 Vdc ± 10%
Medium consumption
2.5A (12,5% dots turned on)
Head Life
150 Km
Operating temperature
0°C + 40°C
Dimensions
145 mm (L) × 195 mm (W) × 150 mm (H)
Weight
1 Kg
English User Manual
Download
JAVAPOS driver for Linux 1.06
Download
JAVAPOS driver for Windows 1.02
Download
Spec Sheet
Download
