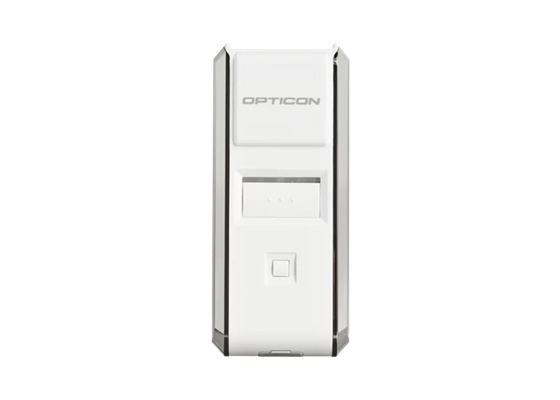

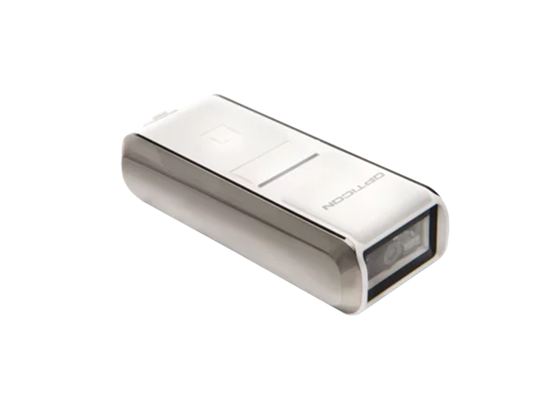

Opticon OPN-3102i

Images may not reflect the actual product
Product Image
small product image0
small product image1

The OPN-3102i is a 2D companion barcode scanner in a compact design. It is lightweight and fits easily in your pocket, making it the ideal companion scanner to bring along. It has real-time data transfer through Bluetooth and, when no connection is available, can store data locally as well. The OPN-3102i supports Apple MFi as well. The integrated NFC tag enables easy Bluetooth pairing and the device can also be charged wirelessly.

The OPN-3102i is a powerful 2D scanner equipped with a high capacity battery so the scanner can go for hours without charging. The Bluetooth connection facilitates real-time data transfer to your system and is able to connect with any device including Apple. This means that any data shared with an Apple product is transferred more quickly. This companion scanner is also resistant to drops up to 1.5 meters without the need for special protection. The OPN-3102i comes in black and white, and the dedicated CRD-3000 cradle charges your device wirelessly. The OPN-3102i looks sleek, modern, and scans up to 100 fps.

Using the OPN-3102i is simple and straightforward. One button to scan the barcode and one button to correct any mistakes made, both actions providing visual feedback for smooth interaction.

Features OPN-3102i barcode scanner:

  • 1D & 2D scanning
  • Apple MFi certified
  • Bluetooth connection
  • Lightweight
  • NFC tag for easy Bluetooth pairing
  • Wireless charging
  • Up to 100 fps
Form Factor
Pocket size scanner
Connection
Wireless
Reading Type
2D
Communication Interface
Bluetooth, NFC, USB
Bluetooth
Ver. 2.1, SPP, HID, 1 to 1 connection, master / slave mode, authentication and encryption
NFC
Type A and B, for easy Bluetooth connection
USB
Micro USB
Non-Visual
Buzzer, vibrate
Light Source
Green aiming LED, warm white LED
Scan Method
CMOS area sensor, 640 x 480 pixels
Scan Rate
Up to 100 fps
Drop Test
1.5 m / 5 ft drop onto concrete surface
IP Rating
IP54
Dimensions (WxHxD)
36 x 83 x 21.5 mm / 1.42 x 3.27 x 0.85 in
Weight Body
Ca. 60 g / 2.12 oz (incl. battery)
Product Compliance
CE, FCC, VCCI, RoHS, IEC62471:2006, EN60950-1, IEC60950-1, EN62479, EN55032 Class B, EN55024
Enclosed
MicroUSB cable, Neck strap
Data Sheet
Download
Quick Start Guide
Download

Shop OPN-3102i Models

OPN3102I-01

OPN-3102i Mobile Barcode Scanner, White with 2D Scanning

$333.33

Shop OPN-3102i Accessories

28-OPNBOOT1-01

Silicon Boot, Black.

$18.00
