Custom America MP Ranger
Description
Specifications
Download

Custom America MP Ranger

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3

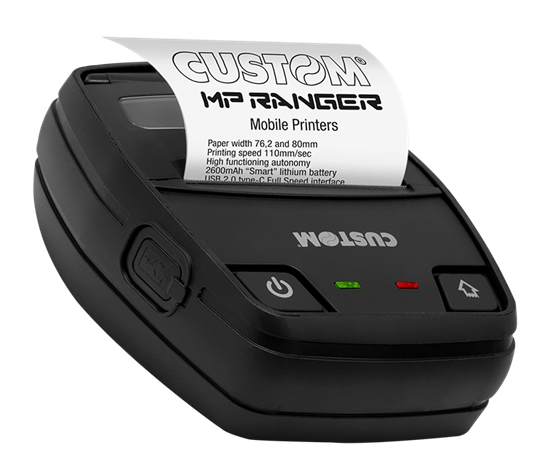

Mobile Printer for On-the-Go Receipt and Label Printing for Logistics and Delivery Services

The MP Ranger is a cutting-edge mobile printer in Custom's product lineup, capable of printing on thermal paper rolls with widths of 76.2 mm or 80 mm.

It features sensors for status and battery monitoring, supports 1D and 2D barcodes, and is built for rugged outdoor use with IP54 protection against splashes and dust, as well as drop resistance from up to 1 meter. The printer offers versatile charging options, including USB Type-C and multi-position cradles, and connects seamlessly to various mobile devices via Bluetooth and Wi-Fi. Accessories include a belt clip, protective case, and charging cradles.

Custom MP Ranger mobile printer
76 / 80 mm Thermal
110 mm/s
USB-C • Wi-Fi • Bluetooth

Key Specifications

Printing Method
Thermal; continuous paper and gap/notch labels
Resolution
203 dpi
Maximum Print Speed
110 mm/s
Media Size
76.2 or 80 mm rolls; 72 mm print width; 40 mm maximum roll diameter
Connectivity
USB-C 2.0, Wi-Fi 802.11 b/g/n, and Bluetooth 4.2 BLE
Platform / Emulation
Windows 32/64-bit driver; CUSTOM/POS emulation
Charging
USB-C or optional single/multi-position cradles
Battery / Protection
7.2 V, 2.6 Ah, 18.72 Wh Li-ion battery; IP54 and 1 m drop protection

What's in the Box

Custom MP Ranger 3-inch mobile printer

Belt clip

Resolution
203 dpi
Max. Print Speed
110 mm/sec
Character Set
PC437, PC850, PC860, PC863, PC865, PC866, PC858 (euro), Cinese esteso GB 18030-2000, Koreano PC949
Supported Media
Continuous paper and label with gap/notch
Roll Width
76,2mm and 80mm
Roll Diameter
max 40mm
Printing Width
72 mm
Emulation
CUSTOM/POS
Interfaces
USB type-C 2.0 Full Speed Wifi 802.11 b/g/n Bluetooth 4.2 BLE
Graphic Memory
3 MB for logos (maximum width 576 dot) + 5 MB per font
Drivers
Windows® (32/64 bit) – only on request WHQL and silent installation
Battery
Li-ion 7.2 V 2.6 Ah 18.72 Wh
MTBF
3246 hours (electronic board)
Print Head Life
50Km / 100 M pulses (12.5% pulses)
Dimensions (L x W x D)
149(L) x 53(H) x 122(P) mm
MP Ranger Data Sheet
Download
MP Ranger Quick Guide
Download

Shop MP Ranger Models

911MM010100P33

MP Ranger, 3" Rugged Mobile Printer, WIFI, BT, NFC, USB-C, 2600MAH, iOS, Windows, Android, Includes Belt Clip

$404.72

Shop MP Ranger Accessories

10021232

Receipt, Paper, 3.1406in x 50ft (79.8mm x 15.2m); DT, Z-Perform 1000D 2.4 mil, Uncoated, 0.5in (12.7mm) core, 50/box, Plain

$117.00

970MM010000001

Protective Case with Shoulder Strap

$40.25

28D30000000014

Spare Battery for MP-Ranger, 26000mAh Li-Ion Rechargeable Battery

$105.83

996ED040000039

Power Adapter for Single Slot dock

$32.00

42000000009900

USB Cable for P-Ranger

$40.00
