DataLogic Memor 12-17

Images may not reflect the actual product

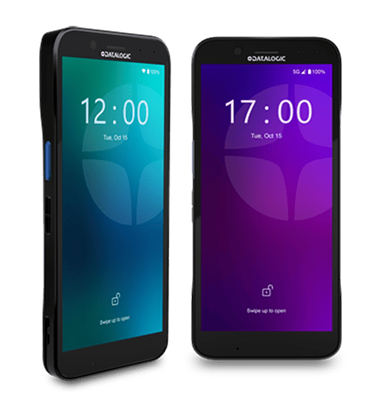

Product Image
small product image0

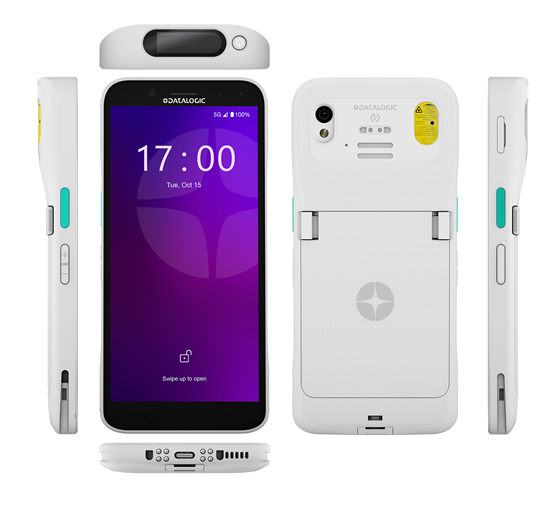

small product image1

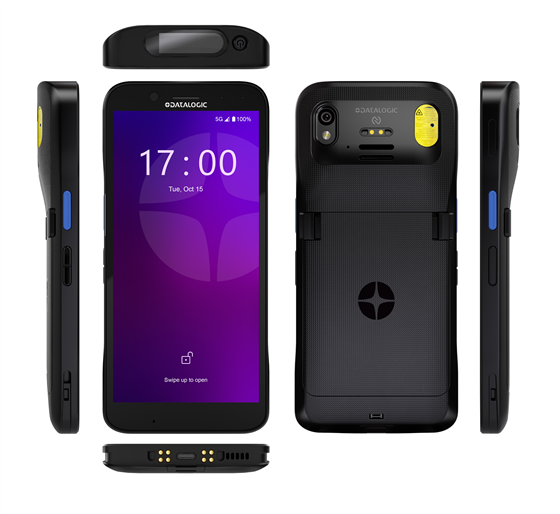

small product image2

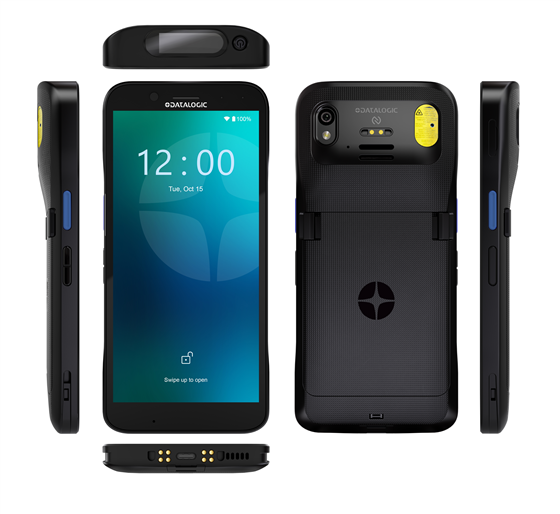

small product image3

Standard Features for the Memor 12/17 Include:
  • Connectivity: Wi‑Fi 6/6E, Cellular 5G (select models), Bluetooth, NFC
  • Display: 6.0" color Full High Definition+ (1080 x 2160); ~450 nits; Corning® Gorilla® Glass 7; multi‑mode capacitive touch with glove/stylus support and water‑drop rejection
  • Battery: 1‑piece swappable, rechargeable Li‑Ion; USB‑C fast charge; Qi EPP wireless charging (7 W); Enterprise Battery Saver
  • Scan Engine: Halogen 2121DL 1D/2D with Green Spot feedback and DeepSight™ decoding; GS1 Digital Link–ready
  • Camera: 13‑megapixel rear camera (LED flash), 8‑megapixel front‑facing camera
  • CPU: Qualcomm® QC4490 octa‑core, up to 2.4 GHz
  • Memory: 6 GB RAM/64 GB Flash; Swap memory adds virtual RAM headroom for smooth multitasking
  • Operating System: Android™ 13 with GMS; platform upgradable to Android 18
  • Drop Specifications: Multiple 4 ft/1.3 m drops to concrete at room temperature; up to 5 ft/1.5 m with protective boot per MIL‑STD‑810H
  • Tumble Specification: 500 tumbles, 1.6 ft/0.5 m; 500 tumbles, 3.3 ft/1.0 m with optional protective boot
  • Sealing: IP68 and IP65, with battery per applicable IEC sealing specifications

Slim and ultra‑thin enterprise‑class devices for front‑facing applications

Memor 12‑17 is designed for comfort and durability during full‑shift use, meeting MIL‑STD‑810H for drop/tumble and using Gorilla® Glass 7 for enhanced scratch and drop protection.

Slim and robust Memor 12/17
GS1 Digital Link scanning

Fast and easy scanning for every type of environment

Halogen 2121DL with Green Spot and DeepSight™ decoding gives quick, confident reads in challenging lighting and on worn labels. The platform is GS1 Digital Link–ready.

Productivity and connectivity redefined

QC4490 plus Swap memory keeps apps responsive. Workers get modern wireless: Wi‑Fi 6/6E across the line and 5G on select Memor 17 models, plus fast GNSS for field navigation.

Qualcomm platform and Swap memory
Charging options and NFC

Charging and NFC, your way

Top up via USB‑C, use wired enterprise cradles for data/charge, or go contactless with Qi wireless‑charging cradles. Multi‑side NFC supports tap‑to‑pay and credential workflows.

Mobility, sustainability and EASEOFCARE

Extended platform support (Android 13 → 18), regular updates via Datalogic Shield, eco‑minded accessories and packaging, and flexible EASEOFCARE coverage.

Mobility, sustainability, EASEOFCARE
Local Area Network (WLAN)
Wi-Fi 6e IEEE 802.11 a/b/g/n/ac/ax and 802.11 d/e/h/i/k/r/ v/w/mc; Frequency range: Country dependent, typically 2.4 GHz,5 GHz and 6 GHz bands; 2x2 MIMO; WPA3 Enterprise 192-bit mode supported
Personal Area Network (WPAN)
Bluetooth wireless technology v5.3 (Classic Bluetooth wireless technology and BLE)
NFC Communication
Support for the following standards: Tag types 1/2/3/4/5 (ISO14443-4 A/B; ISO15693; Mifare; Felica) Card emulator. Contactless payments and Apple ECP protocol supported.
WWAN / Cellular
Memor 17
    LTE-Advanced / 4G+; NR 5G FR1; 3GPP Rel.16;
  • EMEA and ROW Configuration: GSM: Quad band; WCDMA: B1/2/4/5/8; FDD_LTE: B1/2/3/4/5/7/8/17/19/20/ 25/28/66; B34/38/39/40/41/42/43; 5G: n1/2/3/5/7/8/20/2 5/28/38/40/41/66/77/78/79;
  • North America Configuration (AT&T and Verizon certified): GSM: 850/1900; WCDMA: B2/4/5; FDD_LTE: B2/ 4/5/7/12/13/17/19/25/26/29/30/66; TDD_LTE: B38/41/48; 5G: N2/5/7/12/13/25/26/29/30/38/41/66/71/77;
  • VoLTE, VoNR and Wi-Fi calling enabled
Global Positioning System (GPS)
Integrated Assisted-GPS (A-GPS)
Supported Types: GPS Dual Band, Galileo Dual Band, BeiDou Dual Band
Battery
1-piece swappable battery pack with rechargeable Li-Ion batteries; 3.87V; 4,000 mAh typical (14.98 Watt-hours)
Wireless Charging
WPC Qi EPP compliant; 7W charging
Drop Resistance
  • Multiple 1.3/4ft drops to concrete across operative temperature without rubber boot per enterprise standard according to MIL STD 810H.
  • Multiple 1.5m/6ft drops to concrete over operating temp (-10°C to 50°C/14°F to 122°F) with rubber boot according to MIL STD 810H.
Tumbles
  • 500 0,5m/1.6 ft tumbles at room temperature without protective boot, meets and exceed IEC 60068-2-32 Procedure 2 specification.
  • 500 1m/3.2 ft tumbles at room temperature with rubber boot, meets and exceed IEC 60068-2-32 Procedure 2 specification.
Sealing
IP65 and IP68 with battery, per IEC60529 specification
Chemical Resistance
General purpose chemical cleansers:
  • “Water solution of Sodium Hypochlorite”
  • “Windex Multisurface / Glassex with ammonia”
  • “Formula 409, Glass and Surface cleaner / Glassex with ammonia”
  • “Ethyl alcohol” “Isopropyl alcohol” “Hydrogen peroxide”
Temperature
  • Operating: -10 to 50 ºC / 14 to 122 ºF
  • Storage/Transport: -40 to 70 ºC / -40 to 158 ºF
ESD
15kV air discharge / 8kV contact discharge
Dimensions
165 x 76.7 x 13.5 mm / 6.49 x 3.0 x 0.53 in
Primary Display
6.0 inch LTPS in 18:9 format - FHD+ resolution 1080x2160; LED backlight; 450 NITS
Keys
Physical Keys: 2 side scan keys; PTT; Power On/Off; Volume Up/ Down; 3 Android soft keys
Touch Panel
Touch Screen: 5 points multi-touch capacitive panel with hardened Gorilla Glass 7 and optical bonding; Support for gloves and stylus; water drops rejection and antifingerprint surface finishing
Weight
With Battery: 245 g/8.6 oz
Camera
  • Rear Camera: Resolution: 13 megapixel; Auto focus
  • Illumination: User controllable LED flash (torch mode);
  • Front Camera: Resolution: 8 megapixel; Fixed focus
Scan Engine
Halogen™ DE2121-DL 1D/2D scan engine; Datalogic’s ‘Green Spot’ for good-read feedback
Sensors
  • Vibration: Software programmable for duration and intensity
  • Accelerometer: 3-Axis accelerometer to detect orientation
  • Gyroscope: Senses angular velocity
  • Ambient Light: Auto adjusts display backlight
  • Proximity: Auto deactivates display when close to face
  • Magnetometer: e-compass for direction and orientation detection
  • Barometer: Atmospheric pressure / Z-location (Memor 17 only)
Interfaces
High Speed USB 3.2 gen1 Host and Client (Type-C); Super Speed USB 2.0 (Type-C, Bottom I/O)
Audio
  • Microphones: 2 mics, with noise cancellation
  • Loudspeaker: Speaker for handsfree calls and audio application
  • Receiver: Speaker for voice calls
SIM Slots
1 Nano SIM; 1 eSIM
Expansion Slots
1 Micro SD card (up to 2TB)
Memory
RAM Model 6GB: 6 GB on-chip RAM, plus an optional 2 GB SWAP Memory (using flash storage as extra RAM, activated through a setting). UFS Flash Storage: 64 GB (both models)
Microprocessor
Qualcomm QCx4490 Octa-core 2.4 GHz
Operating System
Android 13, upgradeable to Android 18
Real-Time Clock
Time and date stamping under software control
Warranty
1-Year Factory Warranty
Memor 12-17 Spec Sheet
Download

Shop Memor 12-17 Models

944950001

Memor 12 Full Touch PDA, NA+ROW, Wi-Fi6E, 6GB/64GB, 2D SR Imager w/Green Spot, Android v13 w/GMS, Black Color (includes battery)

Connectivity:

WiFi

$775.68

944950003

Memor 17 Full Touch PDA, std range 2D Imager w/Green Spot feedback, Camera (13MP), front camera (8MP), Wi-Fi6E+5G, 6GB/64GB, Qualcomm Octa Core, 2,4GHz, Android v13, NFC, PTT, IP 65, IP67, Black Color, includes Google Mobile Services, battery 4000 mAh.

Connectivity:

WiFi & Cellular

$864.00

944950006

Memor 17 HC Full Touch PDA, White version, std range 2D Imager w/Green Spot feedback, Camera (13MP), front camera (8MP), Wi-Fi6E+5G, 6GB/64GB, QC Octa Core, 2,4GHz, Android v13, NFC, PTT, IP 65, IP67, includes Google Mobile Services, battery 4000 mAh

Healthcare:

Healthcare

Connectivity:

WiFi & Cellular

$887.04

Shop Memor 12-17 Accessories

94A150131

4-Slot Wireless Charging Dock -charge only (requires 94ACC0380 - Power supply and regional power cord) for Memor 12-17 (requires 94ACC0397 - Adapters 4 pcs/units for Memor 12-17) or for Memor 30-35 (requires 94ACC0402 - Adapters 4 pcs/units for Memor 30-35)

$439.30

94ACC0380

Power Supply for Charging Docks, Memor 30-35 (Power Cord Sold Separately)

$41.69

94ACC0397

Adapter for cradles wireless (4 PCS/unit) for Memor 12-17

$14.79

95ACC1113

AC Power Line Cord. Datalogic. 3-Pin. 120 Volt. North America.

$17.00

94A150128

Single Slot Charging Dock - charge only (requires 94ACC0327 - USB-C cable and 94ACC0383 - Power Wall Adapter) for Memor 30-35 w/o rubber boot (requires 94ACC0401 - Adapter 1 pcs/unit for Memor 30-35)

$99.98

94ACC0327

USB-C Cable / 1.2m Long

$19.60

94ACC0383

Power Wall Adapter Kit, Memor 30-35, 4 Regional Plugs USB-C

$26.40

94ACC0395

Adapter for cradles wired (1 PC), Memor 12-17 without protective boot

$4.23

94A150123

Single Slot Dock Charging/Data (Ethernet+USB C) w/Spare Battery Slot - (requires 94ACC0380 - Power supply and regional power cord) for Memor 12-17, includes adapter

$271.05

94A150129

Single Slot Wireless Charging Dock -charge only (requires part numbers 94ACC0327 - USB-C cable and 94ACC0383 - Power Wall Adapter) for Memor 12-17 (requires 94ACC0394 - Adapter 1pcs/unit for Memor 12-17) and for Memor 30-35 (requires 94ACC0400 - Adapter 1pcs/unit)

$133.06

94A150133

Smart Docking Station - Desktop mode (requires 94ACC0380 - Power supply and regional power cord) for M12-17 w/o rubber boot (requires 94ACC0395 - Adapter 1 pcs/unit for M12-17) or for M30-35 w/o rubber boot (req 94ACC0401 - Adapter 1pcs/unit for M30-35)

$383.68

94A150125

Vehicle Wireless Charging Dock for Memor 12-17 W Protective Boot - Charge Only (Requires Part Numbers 94ACC0327 - USB-C Cable and 94ACC0382 CLA Adapter)

$473.06

94ACC0410

Battery, Standard+Wireless charging 4000 mAh, for Memor 12-17

$72.20

AH-SLED03

ACTIVE ePop-Loq® CASE FOR MEMOR M12-17

$96.52

94ACC0377

Belt Holster (w/Belt Clip) for Memor 30/35

$27.80

94ACC0081

Lanyard to tether the Skorpio X3 or Falcon X3 to the wrist. Included with pistol grip models

$21.00

94ACC0406

Pistol grip (Scan Trigger Handle) for Memor 12-17 (requires 94ACC0404 Protective boot to mount the device

$99.98

94ACC0404

Protective Boot for Memor 12-17

$38.02
