Star Micronics mC-Label3
Description
Specifications
Download

Star Micronics mC-Label3

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6
small product image7

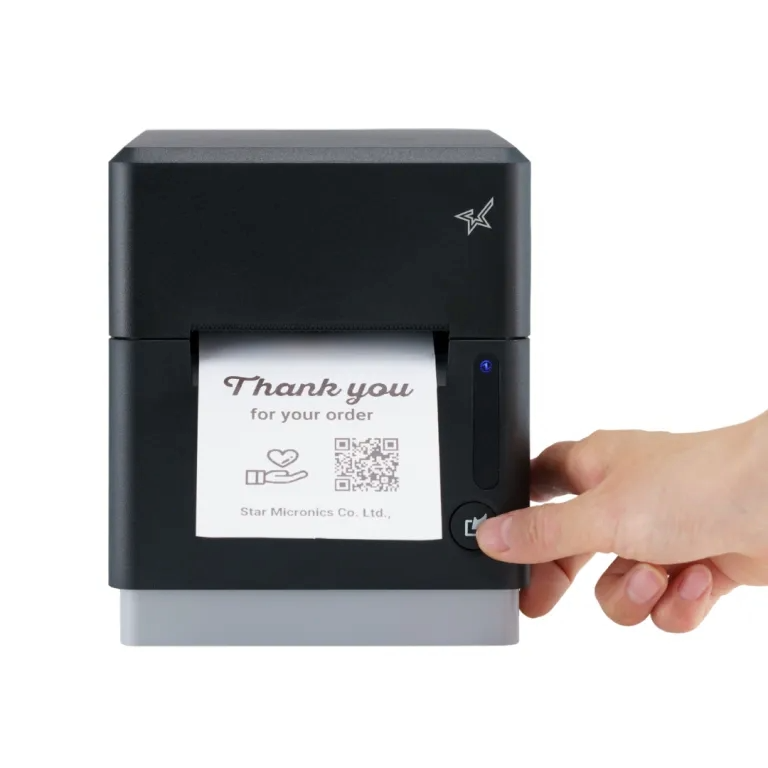

mC-Label3 (iOS)

mC-Label3 - iOS Compatible Multifunctional Printer (USB-C, Bluetooth) The versatile mC-Label3 printing solution is another Star innovation, combining multiple printing options into one. With superior quality, this multimedia printer can print on various media, from die-cut labels to permanent linerless and receipt paper, making it much more than a label printer.
  • • Max Print Width: 3 Inches
  • • Labels: Linerless sticky labels, traditional labels, die-cut labels, & regular receipt paper
  • • Warranty: 1-Year
  • • Return Period: 15 Days
  • • Lifetime Support
  • • Free Shipping

Optimized Multimedia & Label Printer

Discover a new standard in printing with the multifunctional mC-Label3 label printer by Star Micronics. Whether you’re printing linerless sticky labels, permanent linerless labels, traditional labels, die-cut labels, or standard receipt paper, the mC-Label3 caters to all your needs. It’s also Cloud Ready, able to connect to Star Micronics Cloud Services and Label Builder. With Star’s Cloud Services, the mC-Label3 offers the flexibility to build, store, and later print multiple static receipt/label images at the touch of a button with One Touch Label. Able to connect to iOS, Android, and Windows devices, it’s equipped with faster SteadyLAN®+ and introduces the latest technology – TetherLAN (SteadyLAN & TetherLAN currently available on Android & Windows devices only).

Features - mC-Label3 Multifunctional Printer

  • Multimedia: Prints on linerless label (permanent & sticky), die-cut label, continuous label, thermal receipt
  • One Touch Label stores pre-made receipts & labels for easy printing
  • Supports any paper width 25mm – 80mm
  • Multiple connectivity options for Android & Windows (USB-C, Bluetooth (MCL32CBi model only), SteadyLAN+, TetherLAN)
  • Apple MFi-certified for iOS Bluetooth connectivity (MCL32CBi model only)
  • Effortless, no-tools-required repairs with minimal upkeep
Receipt Printing

One-Touch Convenience
Effortless convenience meets innovative technology with the mC-Label3’s One Touch feature. With this revolutionary functionality, you can store and allocate up to three static receipt or label images within the mC-Label3, printing them by pressing a button. Whether you need to print food safety labels, retail item details, or logos, it’s as easy as one, two, or three pushes of the printer’s multi-function button. This means streamlined operations and maximized efficiency, even in the absence of an internet connection.

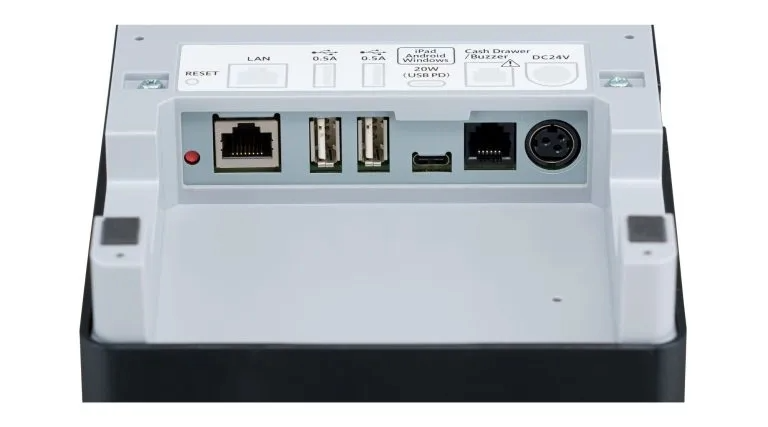

Interface Ports of mC-Label3

The Latest Technology
The mC-Label3 really stands out with its cutting-edge technologies: SteadyLAN® and TetherLAN. The SteadyLAN technology offers a lightning-fast, stable internet connection to Android and Windows mobile devices connected to networked Star printers. It’s much faster than its predecessor, transforming any business operation using it. In addition, TetherLAN technology enables your 4G & 5G connected device to share its network connection with the mC-Label3. Combined with CloudPRNT, TetherLAN establishes a dependable cloud-based printing environment, ensuring accessibility and efficiency anywhere, anytime.

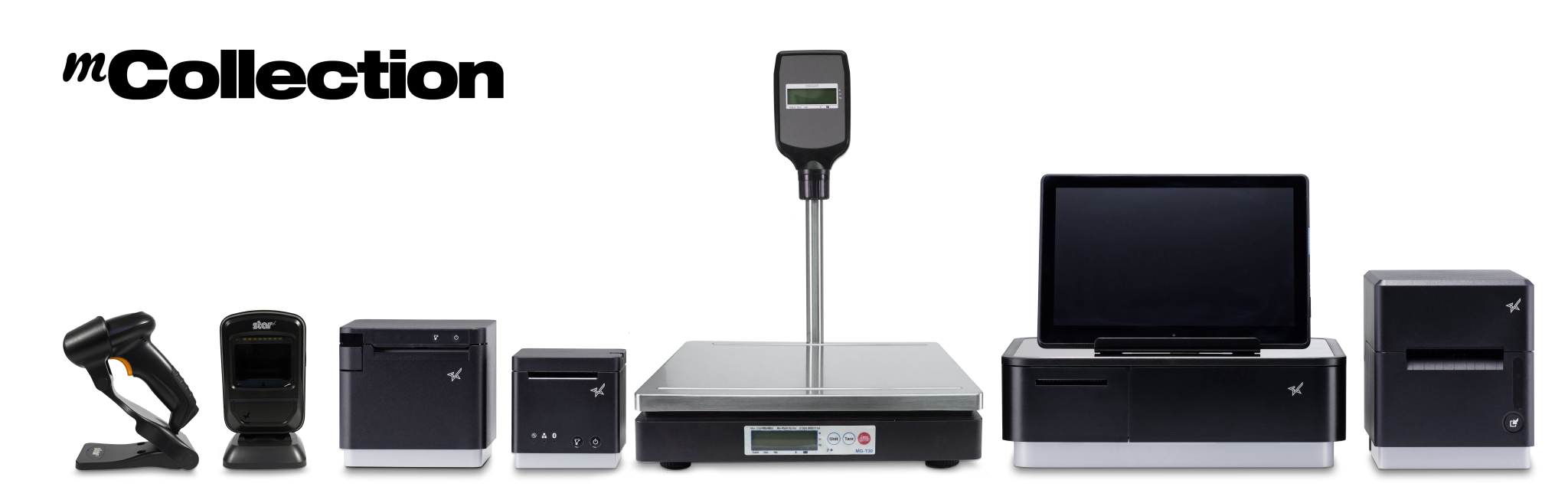

mCollection of POS devices

Part of the mCollection
The mC-Label3 multifunctional label and receipt printer is part of the Star Micronics’ mCollection – a line of mPOS hardware designed for the mobile future. The mCollection includes printers, cash drawers, scales, tablet display stands and pole mounts, and more. With multiple connectivity options and a sleek, modern design, the mCollection is changing the face of retail and hospitality.


BOX CONTENTS

  • AC Adapter
  • Power Cable
  • USB Cable (C-C 1m & C-A 1.8m)
  • LAN Cable (1m)
  • Simple Setup Sheet
  • Safety Guide
  • Self-Cleaning Paper Roll


mC-Label3 Online Manual can be found here: mC-Label3 Online Manual.

Star Paper
Looking for Compatible Labels or Receipt Paper?

We offer Star Micronic's full range of media! Having trouble finding what you need? Give us a call! We have people ready to help.

Printer Method
Direct Thermal (Thermosensitive type)
Print Speed
180 mm/sec (7 IPS)
Print Resolution
8 dots/mm (203 dpi)
Bar Codes
1D: UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, ITF, CODE39, CODE93, CODE128, CODABAR (NW-7) GS1-128, GS1 Omnidirectional, GS1 Truncated, GS1 Limited, GS1 Expanded
2D: PDF417, GS1 Stacked, GS1 Stacked Omnidirectional, GS1 Expanded Stacked, QR Code
Composite: GS1 Composite Symbols
Media Supported
Linerless Label (Sticky + Permanent), Die Cut Label, Continuous Label, Thermal Receipt
Paper Load
“Drop-in and print” paper loading
Sensors
Paper Out Sensor
Paper Low Sensor
Taken, Paper Jam
GAP, BM, PE, Cover Open
Paper Roll Position
Cutter Home Position
If mC-Label3 gets too hot, printing will pause until temperature returns to normal
Multiple Print Widths
80mm, 58mm, 40mm, 25mm
Top Margin
3mm (default), 11mm
Water & Insect Proofing
Protection equivalent to IP22 rating
Power Supply
External: PS65AT-24A
Swappable Interfaces
N/A
Connectivity
MCL32CI: mC-Label3 with USB-C and LAN
MCL32CBI: mC-Label3 with USB-C, LAN, and Bluetooth
Dimensions
143 x 212 x 169mm (w x h x d)
Shelf Life
Reliability MCBF - 60 Million Lines
Print Head - 100km
Auto Cutter - 2 Million Cuts
What’s Included
AC Adapter
Power Cable
USB Cable (C-C 1m & C-A 1.8m)
LAN Cable (1m)
Simple Setup Sheet
Safety Guide
Self-Cleaning Paper Roll
Optional Accessories
mG-S322, mG-S1501, mG-S8200, 1D Barcode Scanners, Customer Display, mC-Sound, Kitchen Buzzer, Cash Drawer
Replacement Parts
Cutter Unit
Platen Roll Unit
2 in 1 (Cutter unit & Platen unit set)
Standard Warranty
2-Year Limited Manufacturer Warranty (US & Canada)
Easy Setup Guide - USB C & Lan
Download
Easy Setup Guide - USB C & Lan & Bluetooth
Download
mC-Label3 Spec Sheet
Download
Windows Driver Zip Folder
Download

Shop mC-Label3 Models

39658110

mC-Label3 Receipt & Label Printer. USB-C & Ethernet (LAN) SteadyLAN TetherLAN CloudPRNT Peripheral Hub Black Ext PS Included

Interface:

USB-C, Ethernet

$608.16

39658310

mC-Label3 Receipt & Label Printer. USB-C, Ethernet (LAN), Bluetooth. SteadyLAN CloudPRNT Peripheral Hub Black Ext PS Included

Interface:

USB-C, Ethernet, Bluetooth

$672.43

37951170

mC-Label3 Receipt & Label Printer. WLAN, USB-C, Ethernet (LAN), and Bluetooth. CloudPRNT, Peripheral Hub, Black, Ext PS Included

Interface:

USB-C, Ethernet, Bluetooth, WLAN

$768.55

37951180

mC-Label3 Receipt & Label Printer. WLAN, USB-C, Ethernet, and Bluetooth (MFi), CloudPRNT, Peripheral Hub, Black, Ext

With MFi:

MFi

Interface:

USB-C, Ethernet, Bluetooth MFi, WLAN

$932.73
