MicroTouch Mach Digital Signage

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2

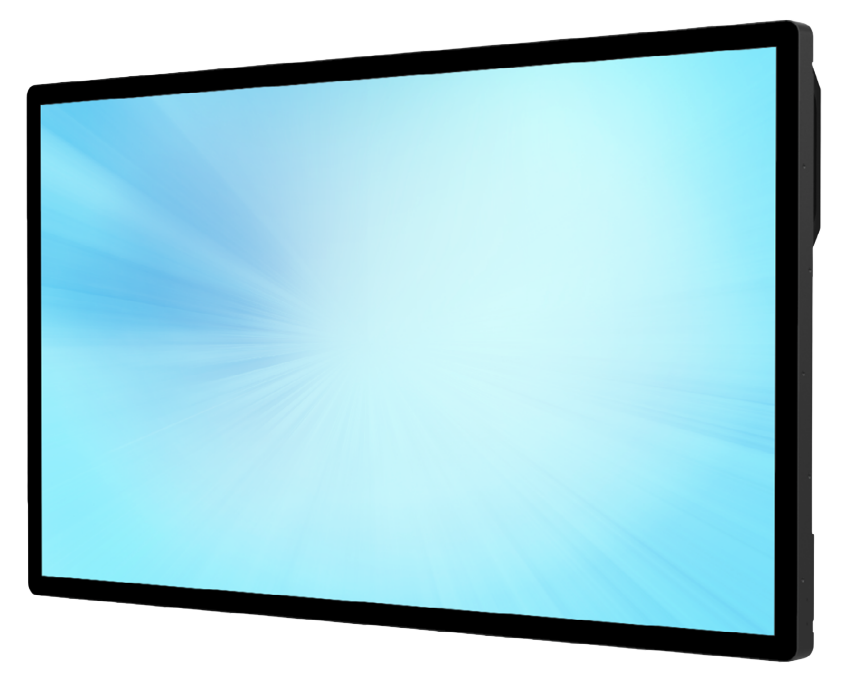

M1 DS Series 4K PCAP Touch Monitors

The M1 DS Series are 4K interactive touch monitors designed for modern digital signage, kiosks, and collaboration spaces. Available in 49", 55", and 65", each model features a UHD 3840 x 2160 panel, up to 500 nits of brightness, and a projected capacitive touch system that supports high-point multi-touch and stylus input.

A durable front glass with IP65 front-side protection helps these displays stand up to heavy public use, while multiple video inputs and USB touch interfaces make integration with PCs, media players, and controllers straightforward. With flexible VESA mounting, integrated speakers, and support for continuous operation, the M1 DS Series delivers a consistent, responsive touch experience across all three sizes.

Featured Specifications

  • Sizes: 49", 55", and 65" 4K touch monitors
  • Maximum Resolution: 3840 x 2160 (UHD)
  • Contrast Ratio: 1100:1
  • Aspect Ratio: 16:9
  • Brightness: 500 nits (No Touch), 450 nits (P-CAP)
  • View Angle: H: 178°, V: 178°
  • Touch: Projected capacitive, multi-touch with stylus support
  • Video Ports: 2 x HDMI, 1 x DisplayPort, 1 x VGA
  • Connectivity: 2 x USB-B for touch, 1 x USB-A, RS232, LAN, audio in/out, SPDIF
  • Front Bezel: Edge-to-edge glass with IP65 front-side protection

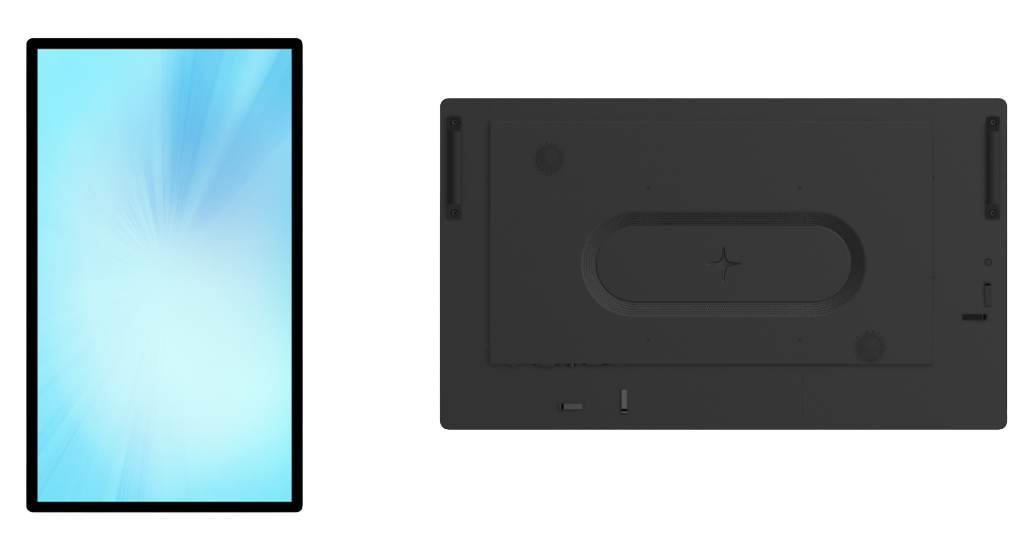

M1 DS 4K PCAP touch monitor front view
M1 DS 4K PCAP touch monitor rear view

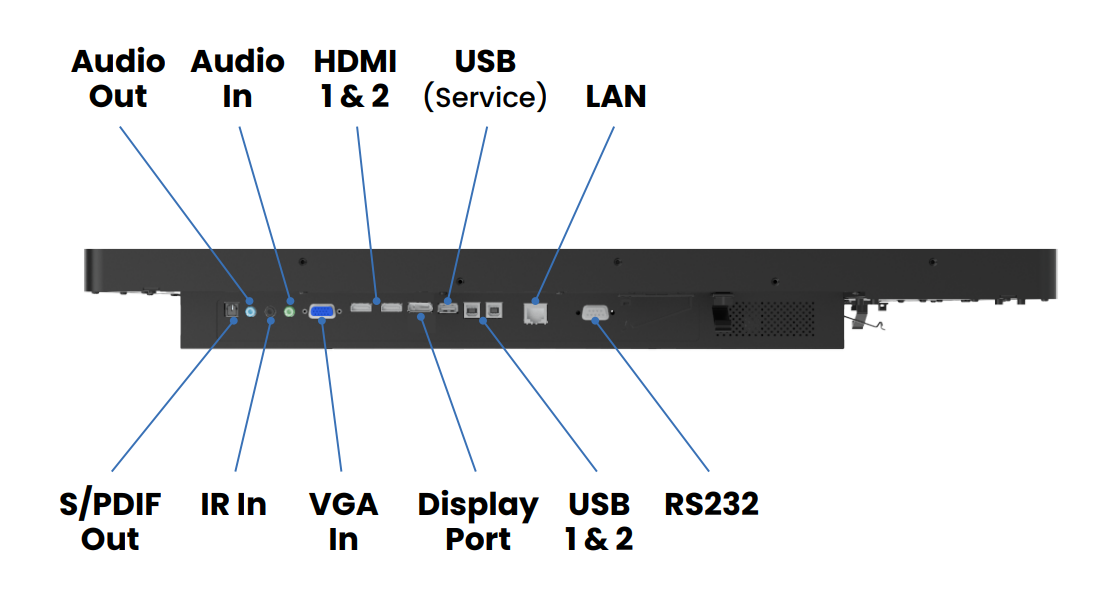

M1 DS 4K PCAP touch monitor ports view

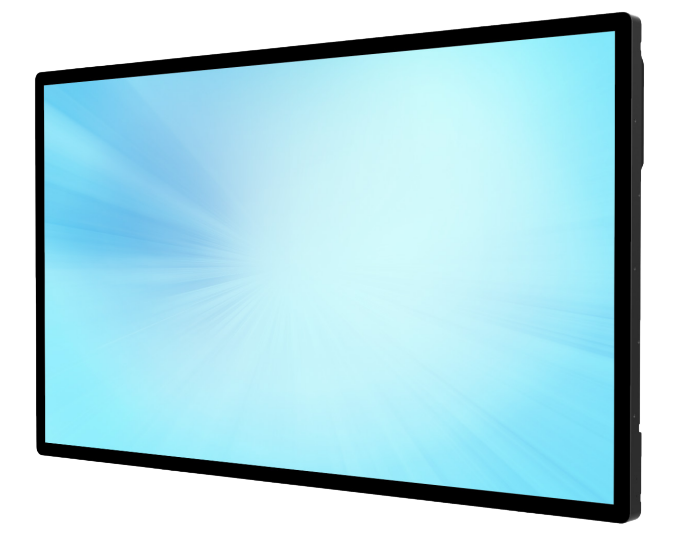

M2 DSN Series 4K Non-Touch Signage Displays

The M2 DSN Series are professional 4K non-touch signage displays built for always-on commercial environments. Available in 49" and 55", each model delivers a UHD 3840 x 2160 image, 500 nits of brightness, and a 16:9 panel with wide viewing angles for clear, impactful content in public spaces.

Fanless operation and 24/7 duty-cycle support make the M2 DSN Series well-suited for retail, transportation, hospitality, and corporate messaging. Connectivity includes multiple HDMI and DisplayPort inputs, VGA, RS232, audio in/out, and network control options, giving integrators the flexibility to tie these displays into existing AV and digital signage platforms.

Featured Specifications

  • Sizes: 49" and 55" 4K signage displays
  • Maximum Resolution: 3840 x 2160 (UHD)
  • Contrast Ratio: 1200:1
  • Aspect Ratio: 16:9
  • Brightness: 500 nits
  • View Angle: H: 178°, V: 178°
  • Video Ports: 2 x HDMI, 1 x DisplayPort, 1 x VGA
  • Control & Audio: RS232, RJ45, audio in/out, SPDIF out
  • Duty Cycle: Fanless design rated for 24/7 operation

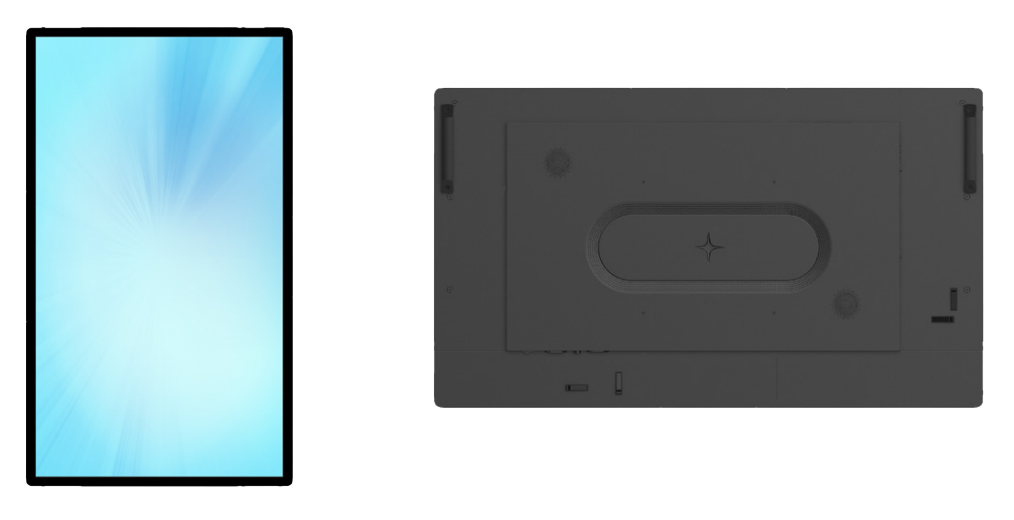

M2 DSN 4K non-touch digital signage display front view
M2 DSN 4K non-touch digital signage display rear view

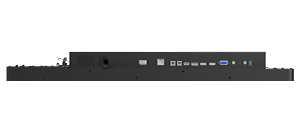

M2 DSN 4K non-touch digital signage display ports view
49" Mach Non-Touch Spec Sheet
Download
49" Mach Touch Spec Sheet
Download
55" Mach Non-Touch Spec Sheet
Download
55" Mach Touch Spec Sheet
Download
65" Mach Non-Touch Spec Sheet
Download

Shop Mach Digital Signage Models

M2-490DSN-A1

49" PCAP Mach Series Digital Signage Monitor. USB for Touch. HDMI DP VGA for Video. USB & DB9 Interface. 3840 x 2160

Display Size:

49"

Touch Display:

With Touch

$1718.75

M2-550DSN-A1

55" PCAP Mach Series Digital Signage Monitor. USB for Touch. HDMI(X2)/DP/VGA/RS232 COM DB9. 3840X2160.

Display Size:

55"

Touch Display:

With Touch

$1968.75

M1-490DS-A1

49" PCAP Mach Series Digital Signage Monitor. USB for Touch. HDMI, DP, VGA for Video. USB & DB9 Interface. 3840 x 2160.

Display Size:

49"

Touch Display:

No Touch

$3042.19

M1-550DS-A1

55" PCAP Mach Series Digital Signage Monitor. USB for Touch. HDMI, DP, VGA for Video. USB & DB9 Interface. 3840 x 2160.

Display Size:

55"

Touch Display:

No Touch

$3214.06

M1-650DS-A1

65" PCAP Mach Series Digital Signage Monitor. USB for Touch. HDMI, DP, VGA for Video. USB & DB9 Interface. 3840 x 2160.

Display Size:

65"

Touch Display:

No Touch

$3609.38
