Custom America K-Ranger
Description
Specifications
Download

Custom America K-Ranger

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6

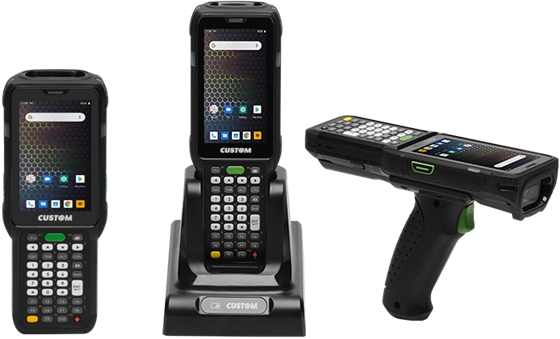

K-Ranger is a rugged handheld computer for barcode-driven work away from the checkout counter.

Custom K-Ranger handheld configurations
4″ PCAP Touch
Android 9
Standard / Long-Range 2D

Key Specifications

Scan Engine
KR500-G: Zebra SE4750 1D/2D; KR550-G: Zebra SE4850 1D/2D long-range
Operating System
Android 9
Display
4-inch TFT, 800 × 480, projected-capacitive multi-touch
Processor / Memory
Snapdragon 450 octa-core 1.8 GHz; 2 GB RAM; 16 GB storage; microSD up to 128 GB
Wireless
Dual-band 802.11 a/b/g/n Wi-Fi, Bluetooth 4.2, NFC, and 4G LTE
Ruggedness
IP65; repeated 1.5 m drops to concrete
Battery
5,200 mAh rechargeable lithium-ion

What's in the Box

K Ranger

Battery

User manual

Warranty card

Charging accessories and pistol grip are sold separately.

Waterproof
IP65
OS
Android™ 9
Keyboard
  • KR500-G Model comes with a Keyboard
  • KR550-G Model comes with a Keyboard
    • Attachable Pistol Grip
  • KR500-G Model can use Pistol Grip
  • KR550-G Model can use Pistol Grip
    • Long range
    KR550-G Variant Only
    Camera
    8 Mpx (only for brick version)
    Display
    4" TFT LCD 800 × 480 resolution, projected capacitive, multi-touch screen
    CPU
    Qualcomm Snapdragon 450/8* Cortex A53 1.8 GHz
    Power
    Rechargeable Li-ion 5200 mAh; Charger 12V 2A power adapter; 5V 2A (slow charge)
    Storage ROM+RAM
    16 GB + 2 GB
    Accessible SD
    up to 128 GB
    GSM
    850/1900
    3G WCDMA
    WCDMA: B2/B4/B5
    4G LTE
  • TDD-LTE：B38/B40/B41
  • FDD-LTE：B2/B4/B5/B7/B12/B13/B17/B26/B27
    • Wi-Fi
    2.4/5 GHz - Integrated IEEE 802.11 a/b/g/n
    2D Scanner
  • KR500-G ScanEngine SE4750 - 1D/2D Barccode
  • KR550-G ScanEngine SE4850 - 1D/2D Barcode Long Range
    • Bluetooth
    4.2
    Keypad
    38 keys + Alphanumeric
    Sim Card
    1 Nano Sim 2G/3G/4G (LTE Europe)
    Drop
    Multiple Drops to Concrete 1.5 m
    Sensors
    Accelerometer (G-sensor), gyroscope, e-compass, proximity sensor, ambient light sensor
    NFC
    Integrated
    Battery
    5200 mAh
    Operation temperature
    -15 °C to 55 °C
    Storage temperature
    -20 °C to 60 °C
    Dimensions
    77.8 mm (H) x 202.4 mm (W) x 41.6 mm (D)
    Weight (without battery)
  • KR500-G 314gr
  • KR550-G 349gr
    • K-Ranger Rugged Scanner Spec Sheet
    Download
    K-Ranger Rugged Scanner User Guide
    Download

    Shop K-Ranger Models

    995CO020200833

    K-Ranger KR550 Rugged Mobile Computer. 38 Button Physical Keyboard. SE4850 Long Range Scan Engine. 2GB RAM, 16GB SSD. Android 9 w/ GMS. IP65. WiFi, Bluetooth 4.0, 4G LTE. 5200MAH Battery. Pistol Grip Sold & Charging Accessories Sold Separately.

    $2216.60

    995ED042600833

    K-Ranger KR500 Rugged Mobile Computer. 38 Button Physical Keyboard. SE4750 Standard Range Scan Engine. 2GB RAM, 16GB SSD. Android 9 w/ GMS. IP65. WiFi, Bluetooth 4.0, 4G LTE. 5200MAH Battery. Charging Accessories & Pistol Grip Sold Separately.

    $1453.68

    Shop K-Ranger Accessories

    996ED040000026

    K-Ranger 4 Slot Charging Cradle. Requires Power Supply (996ED040000029) & AC Power Cable (976ZZ010000021)

    $446.45

    996ED040000029

    K RANGER Power Supply for 4 Slot Cradle (977ED040000007)

    $42.50

    977ED040000007

    K Ranger 4 Slot Charging Cradle. (Requires Power Supply 996ED040000029)

    $458.23

    48000000005500

    K-Ranger Replacement Battery

    $121.25

    977ED040000005

    K-Ranger Single Slot Cradle with Back-Up Battery Slot (Requires Power Supply (976ZZ010000021) & Cable (996ED040000028).

    $140.38

    996ED040000027

    K-Ranger Card Cradle. Includes Snap On Micro USB converter and Cable

    $72.77

    996ED040000031

    K-Ranger Snap-On IO to Micro USB Converter.

    $55.25

    996ED040000036

    K-Ranger Micro USB Cable

    $24.00

    996CO020000001

    K-Ranger Pistol Grip Add on. Camera is Disabled When Equipped.

    $164.17

    996ED040000028

    K-Ranger Single Cradle Power Supply

    $52.75

    996ED040000032

    K-RANGER RUBBER BOOT KR5 SC

    $28.50

    976ZZ010000021

    Custom America AC Power Cable

    $33.33
