Honeywell HF810 & HF811
Description
Specifications
Download

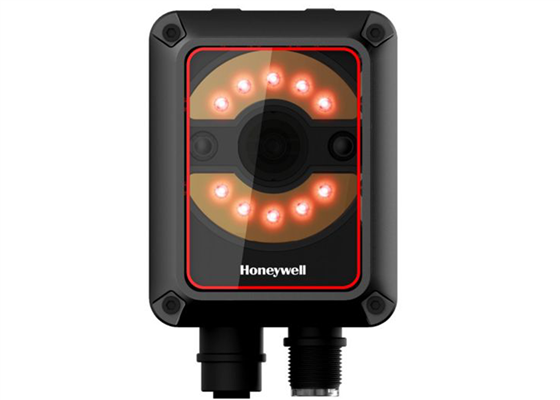

Honeywell HF810 & HF811

Images may not reflect the actual product
Product Image
small product image0
small product image1

Built with flexibility in mind, the HF810 and HF811 are designed to perform in a wide variety of environments and enable seamless integration with package sorting and light manufacturing processes.

About the HF810 & HF811

With Honeywell’s state-of-the-art technology in encoding and decoding, HF810 Fixed-mount 2D Industrial Scanner offers powerful performance, including DPM capabilities, in a compact form factor that can be networked to build a complete manufacturing or warehouse management solution for end users.

Features and Benefits

  • Enhanced performance - Dedicated DPM algorithm for rapid scanning in manufacturing workflows
  • Flexible configuration - Network-ready with I/O functionality for accessories such as external triggers and auxiliary lighting
  • Plug and Play - DataMax Plus configuration tool enables rapid setup. Autotune function optimizes scanning parameters with the press of a button
Dimensions with Stand (H x W x D)
70 mm x 55 mm x 45 mm
Weight
180g
Lens
Liquid Lens
Communication
RS232, RS485, TCP/IP, Field Bus Protocol (Profinet, EthernetIP, Modbus TCP)
Operating Temperature
0°C to 50°C
Storage Temperature
-20°C to 70°C
IP Rating
IP65
Scan Pattern
Area image
Resolution
  • HF811:
    • 2 MP
  • HF810:
    • 0.5 MP
Scan Angle
  • Horizontal:
    • 20-39° (Narrow vs. Wide FOV)
  • Vertical:
    • 11-22° (Narrow vs. Wide FOV)
Decode Capability
Reads standard 1D, PDF, 2D (QR, Datamatrix, Maxicode, Aztec) DPM
Quick Start Guide
Download
Spec Sheet
Download
User Manual
Download

Shop HF810 & HF811 Models

HF811-11WT00004K-R

HF811 Fixed-Mount 1D/2D DPM Scanner, 2MP, Wide FOV, White LED, Ethernet/RS232/RS485, Includes I/O Connector Covers, No Power Supply or Cables

Megapixel:

2MP

LED Illumination:

White

Field of View:

Wide

$1651.55

HF810-01BT00004K-R

HF810 Fixed-Mount 1D/2D DPM Scanner, 0.5MP, Narrow FOV, Blue LED, Ethernet/RS232/RS485, Includes I/O Connector Covers, No Power Supply or Cables

Megapixel:

0.5MP

LED Illumination:

Blue

Field of View:

Narrow

$1445.72

HF810-01RT00004K-R

HF810 Fixed-Mount 1D/2D DPM Scanner, 0.5MP, Narrow FOV, Red LED, Ethernet/RS232/RS485, Includes I/O Connector Covers, No Power Supply or Cables

Megapixel:

0.5MP

Field of View:

Narrow

LED Illumination:

Red

$1445.72

HF810-01WT00004K-R

HF810 Fixed-Mount 1D/2D DPM Scanner, 0.5MP, Narrow FOV, White LED, Ethernet/RS232/RS485, Includes I/O Connector Covers, No Power Supply or Cables

Megapixel:

0.5MP

Field of View:

Narrow

LED Illumination:

White

$1445.72

HF810-11BT00004K-R

HF810 Fixed-Mount 1D/2D DPM Scanner, 0.5MP, Wide FOV, Blue LED, Ethernet/RS232/RS485, Includes I/O Connector Covers, No Power Supply or Cables

Megapixel:

0.5MP

LED Illumination:

Blue

Field of View:

Wide

$1445.72

HF810-11RT00004K-R

HF810 Fixed-Mount 1D/2D DPM Scanner, 0.5MP, Wide FOV, Red LED, Ethernet/RS232/RS485, Includes I/O Connector Covers, No Power Supply or Cables

Megapixel:

0.5MP

LED Illumination:

Red

Field of View:

Wide

$1445.72

HF810-11WT00004K-R

HF810 Fixed-Mount 1D/2D DPM Scanner, 0.5MP, Wide FOV, White LED, Ethernet/RS232/RS485, Includes I/O Connector Covers, No Power Supply or Cables

Megapixel:

0.5MP

LED Illumination:

White

Field of View:

Wide

$1445.72

HF811-01BT00004K-R

HF811 Fixed-Mount 1D/2D DPM Scanner, 2MP, Narrow FOV, Blue LED, Ethernet/RS232/RS485, Includes I/O Connector Covers, No Power Supply or Cables

Megapixel:

2MP

LED Illumination:

Blue

Field of View:

Narrow

$1651.55

HF811-01RT00004K-R

HF811 Fixed-Mount 1D/2D DPM Scanner, 2MP, Narrow FOV, Red LED, Ethernet/RS232/RS485, Includes I/O Connector Covers, No Power Supply or Cables

Megapixel:

2MP

Field of View:

Narrow

LED Illumination:

Red

$1651.55

HF811-01WT00004K-R

HF811 Fixed-Mount 1D/2D DPM Scanner, 2MP, Narrow FOV, White LED, Ethernet/RS232/RS485, Includes I/O Connector Covers, No Power Supply or Cables

Megapixel:

2MP

Field of View:

Narrow

LED Illumination:

White

$1651.55

HF811-11BT00004K-R

HF811 Fixed-Mount 1D/2D DPM Scanner, 2MP, Wide FOV, Blue LED, Ethernet/RS232/RS485, Includes I/O Connector Covers, No Power Supply or Cables

Megapixel:

2MP

LED Illumination:

Blue

Field of View:

Wide

$1651.55

HF811-11RT00004K-R

HF811 Fixed-Mount 1D/2D DPM Scanner, 2MP, Wide FOV, Red LED, Ethernet/RS232/RS485, Includes I/O Connector Covers, No Power Supply or Cables

Megapixel:

2MP

LED Illumination:

Red

Field of View:

Wide

$1651.55

Shop HF810 & HF811 Accessories

HF8TCB-ETHER-002

HF81X Ethernet Cable, M12 Connector, 2 meters.

$56.85

HF8TCB-ETHER-005

HF81X Ethernet Cable, M12 Connector, 5 meters.

$94.74

HF8TCB-ETHER-010

HF81X Ethernet Cable, M12 Connector, 10 meters.

$101.51

HF8TCB-IOB-002

HF81X IO Cable, M12/DB9 connectors, 2 meters.

$87.97

HF8TCB-IOB-005

HF81X IO Cable, M12 Connector, 5 meters.

$94.74

HF8TCB-IOB-010

HF81X IO Cable, M12 Connector, 10 meters.

$135.35

HF8TCB-SERIAL-002

HF81X Serial Cable, M12/DB9 connectors, 2 meters.

$135.35

HF8TCB-SERIAL-005

HF81X Serial Cable, M12/DB9 connectors, 5 meters.

$182.72

HF8TCB-SERIAL-010

HF81X Serial Cable, M12/DB9 Connectors, 10 meters.

$324.84

HF8ACC-BRACKET-01

HF81X Installation Bracket.

$10.44

HCB-PWR-02

HF81X Power Supply.

$215.19
