Elo TouchSystems EloPOS Pack

Images may not reflect the actual product
Product Image
small product image0

Designed for Versatility

The EloPOS Pack delivers a powerful enterprise-ready compute platform in a sleek, compact form factor. Backed by the security and infrastructure of a Windows-based system with Intel’s Q370 Chipset and the speed of the Intel’s 9th gen processors, the EloPOS Pack provides the power you need to run your business. With versatile connectivity options, plug in anything from Elo’s latest monitor via single cable USB-C to a legacy printer requiring a 12V powered-USB. The system provides flexibility to make upgrades as your business requirements change.

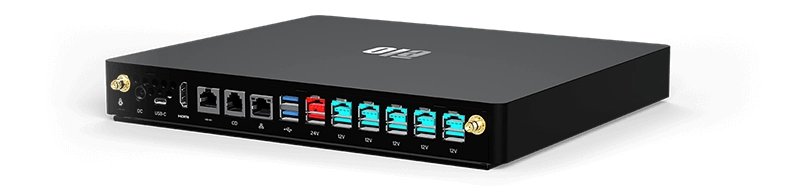

EloPOS Pack Prominently displaying peripheral ports.

Small Footprint

Purpose-built to accommodate compact spaces, the EloPOS Pack boasts a smaller footprint in both size and weight than other commercial-grade PCs.

Photo of the back of the unit, slightly angled.

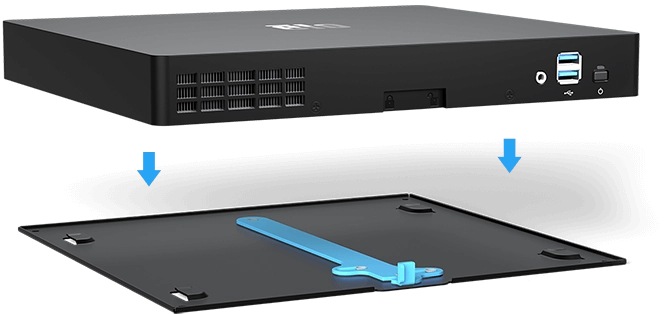

Unit floating over mounting plate, showcasing how they attach.

Securely Mount

Easily secure the EloPOS Pack to any counter in a snap. Attach the mounting bracket to your desired location and simply clip it into place. And for added security, you can use the Kensington locks.

Connect It All

With 16 connection ports, you can connect all the peripherals you need. From cash drawers and printers to barcode scanners and payment devices — there is a port to connect it all.

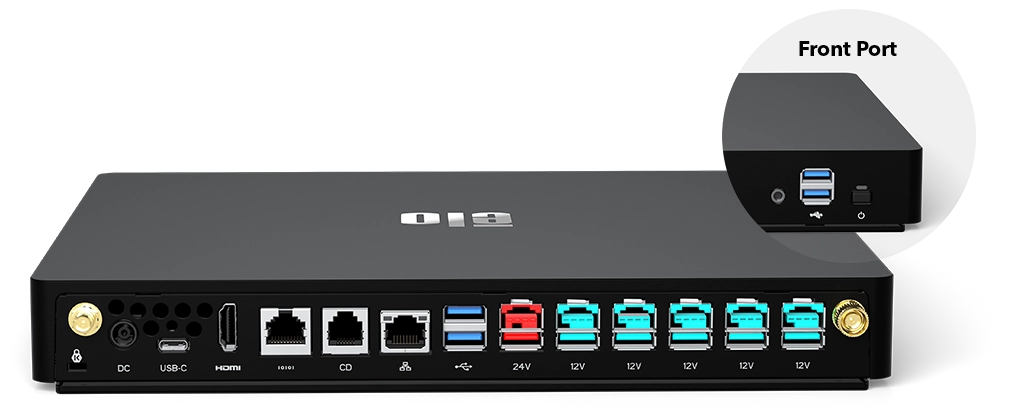

Angled photo exposing peripheral ports next to select compatible Elo displays

Connectivity for your accessories

With 17 connection ports, you can connect all the peripherals you need. From cash drawers and printers to barcode scanners and payment devices — there is a port to connect it all.

  • 1 x HDMI port
  • 1 x LAN RJ45 (Gigabit)
  • 2 x USB 3.0 (Front side)
  • 2 x USB 3.0 (Rear side)
  • 1 x 24V on I/O
  • 5 x 12V on I/O
  • 1 x RJ50
  • 1 x 12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal switch)
  • 1 x Full-function USB-C (Power up to 27W, USB 3.0, Display Port)
  • 1 x 3.5 mm headset jack

What's in the Box

  • EloPOS Pack
  • North America Power Cord (1800+/-50mm), (6 ft +/- 1 inch)
  • EU Power Cord (1800+/-50mm)
  • Power Adapter – 180W
  • Cable RJ-50 to DB-9 (900+/-30mm), (3 ft +/- 1 inch)
  • USB Type-C cable (1800+/-50mm), (6 ft +/- 1 inch)
  • HDMI cable (1800+/-50mm), (6 ft +/- 1 inch)
  • USB cable (1800+/-50mm), (6 ft +/- 1 inch)
  • 2x SMA Antenna
  • Quick Installation Guide (QIG)
EloPOS Pack Dimensional Drawing
Download
EloPOS Pack Spec Sheet
Download
EloPOS Pack User Manual
Download

Shop EloPOS Pack Models

E923382

EloPOS Pack, Win 10, Celeron G4900T, 8GB RAM, 128GB SSD, Q370 Chipset

Storage:

128GB

Memory:

8GB

Processor:

Celeron

OS:

Win 10

$1361.27

E944068

EloPOS Pack, Win 10, Core i3, 8GB RAM, 128GB SSD, Q370 Chipset

Storage:

128GB

Memory:

8GB

Processor:

i3

OS:

Win 10

$1626.00

E945053

EloPOS Pack, Win 10, Core i5, 8GB RAM, 128GB SSD, Q370 Chipset

Storage:

128GB

Memory:

8GB

Processor:

i5

OS:

Win 10

$2088.27

E943670

EloPOS Pack, Win 10, Celeron G4900T, 4GB RAM, 128GB SSD, Q370 Chipset

Storage:

128GB

Memory:

4GB

Processor:

Celeron

OS:

Win 10

$1261.83

E496697

EloPOS Pack, Win 10, Core i5, 32GB RAM, 256GB SSD, Q370 Chipset

Storage:

256GB

Memory:

32GB

Processor:

i5

OS:

Win 10

$2339.48

E943471

EloPOS Pack, No OS, Celeron G4900T, 4GB RAM, 128GB SSD, Q370 Chipset

Storage:

128GB

Memory:

4GB

Processor:

Celeron

OS:

No OS

$1158.35

E944853

EloPOS Pack, No OS, Core i5, 8GB RAM, 128GB SSD, Q370 Chipset

Storage:

128GB

Memory:

8GB

Processor:

i5

OS:

No OS

$1906.85

E511521

EloPOS Pack, No OS, Core i5, 32GB RAM, 256GB SSD, Q370 Chipset

Storage:

256GB

Memory:

32GB

Processor:

i5

OS:

No OS

$2153.95

E511713

EloPOS Pack, No OS, Core i7, 32GB RAM, 256GB SSD, Q370 Chipset

Storage:

256GB

Memory:

32GB

Processor:

i7

OS:

No OS

$2398.69
