Elo TouchSystems ECMG4 Module

Images may not reflect the actual product
Product Image
small product image0

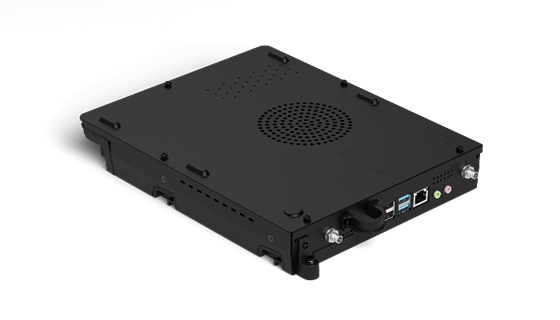

Elo ECMG4
Computer Modules

The Elo ECMG4 Computer Modules feature Intel® Core® 7th Generation CPUs with enhanced graphics performance. Available with Intel i5 processors for Microsoft Windows® 10 or no operating system, the commercial grade computer modules transform Elo's Large Format Interactive Displays into powerful all-in-one platforms. By adding touch to digital signage installations, you can create immersive brand experiences and self-service solutions to help increase customer engagement and satisfaction.

Smaller Form Factor

With dimensions of 11.07x8.2x1.7 the new ECMG4 form factor is 47% smaller than the previous model,
delivering a lower cost, lower energy consumption mini pc that's easier to install and maintain.

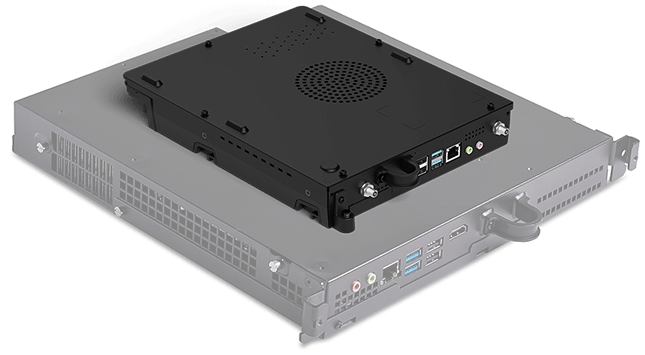

ECMG4 stacked on an older variant, highlighting smaller size

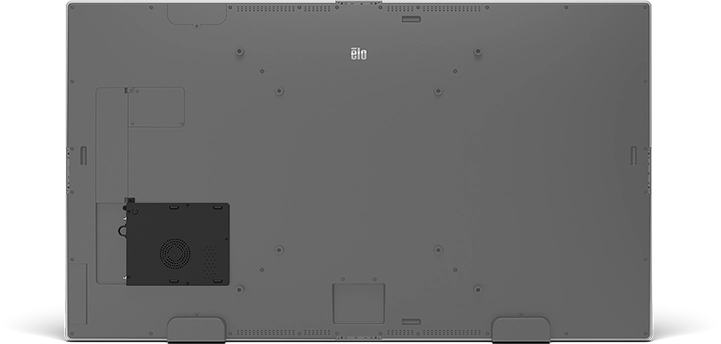

Unit floating over mounting plate, showcasing how they attach.

Easy Installation

The Elo IDS Computer Modules slide into the back of the touchscreen display to deliver the industry's thinnest commercial grade all-in-one large format touchcomputers. Field installation is easy with no external cables required. AC power, video and USB signals pass between the computer module and the Elo IDS touch display via an internal docking connector.

Connections

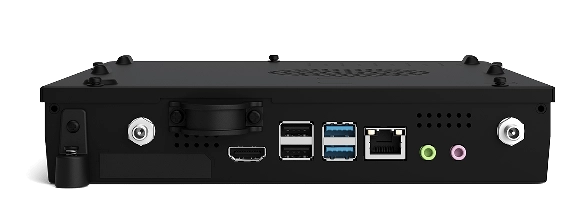

ECMG4 close-up showing peripheral ports

  • LAN
  • 2x USB 2.0 Type A
  • 2x USB 3.0 Type A
  • HDMI
  • 3.5 mm line out & mic in

What's in the Box

  • Quick Installation Guide (QIG)
  • 2x WiFi/BT Antenna
  • 4x M6x50 screws
  • 4x M8x50 screws
  • 4x Spacers

Compatible with

  • 3203L TouchPro
  • 4303L TouchPro and IR
  • 5053L TouchPro and IR
  • 5503L TouchPro and IR
  • 5553L TouchPro and IR
  • 6553L TouchPro and IR
Processor
Intel® Core™ i5-7500T Processor
  • 6M Cache, up to 3.30 GHz
  • 6 MB Intel Smart Cache
  • 8 GT/s Direct Media
  • Interface 3 (DMI3)
Chipset
IntelH110 Chipset
Video
Intel HD Graphics 630
TDP
35W
BIOS
AMI
Storage
256GB m.2 Solid State Drive (SSD)
GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
Memory
8 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots
16 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots (E405488 only)
Maximum memory using 2 slots. Expandable up to 64GB maximum, DDR4-2133/2400 @ 1.2V
Operating Systems Supported
No Operating System
Microsoft Windows 10 64-bit (SAC)
Microsoft Windows 10 Enterprise 2019 LTSC 64-bit
Display Compatibility
5553L and 6553L Interactive Displays
USB Port(s)
2 x USB 2.0 Type A; 2 x USB 3.0 Type A
Ethernet Port(s)
1 x LAN RJ45 (Gigabit)
Wireless
IEEE 802.11 a/b/g/n/ac (downlink MU-MIMO
Bluetooth
Bluetooth 5
Audio Ports
1 x 3.5 mm Line out; 1 x 3.5 mm MIC in
Video Out
1 x HDMI (UHD capable)
Real Time Clock
Replaceable lithium-ion battery for clock
Power Supply
Power provided by IDS Monitor
Dimensions
11.07" x 8.2" x 1.7" / 281.1 mm x 208.2 mm x 43 mm
Shipping Box Dimensions
28.74" x 20.47" x 13.78" / 730 mm x 520 mm x 350 mm
Weight
Unpackaged: 4.6 lbs / 2.1 kg; Packaged: 7.3 lbs / 3.3 kg
Temperature
Operating: 0°C to 40°C (32°F to 104°F) ; Storage: -30°C to 60°C (-22°F to 140°F)
Humidity (non-condensing)
Operating: 20% to 80%; Storage: 10% to 90%
Agency Approvals
UL/cUL, CB, FCC, CE, AS, NZS, VCCI
Warranty
Three years
Extended Warranty
  • E896120 - 4 Year Warranty Coverage
  • E896322 - 5 Year Warranty Coverage
  • E896699 - 3 Year Warranty Coverage + AUR
  • E896903 - 4 Year Warranty Coverage + AUR
  • E897104 - 5 Year Warranty Coverage + AUR
Optional Product Coverage
On Site Exchange included in Continental US only
MTBF
50,000 hours demonstrated
What’s in the box
QIG, 2x WiFi/BT Antenna, 4x M6x50 screws, 4x M8x50 screws, 4x Spacers
Elo ECMG4 Quick Install Guide
Download
Elo ECMG4 Spec Sheet
Download
Elo ECMG4 User Manual
Download

Shop ECMG4 Module Models

E228087

Elo Computer Module for IDS 3 Series, Intel Core 7th Gen i5, HD Graphics 630, 8 GB RAM, 256 GB SSD, Windows 10 LTSC

OS:

Windows 10

$1175.83

E227895

Computer Module for IDS 3 Series, Intel Core 7th Gen i5, HD Graphics 630, 8 GB RAM, 256 GB SSD, No O/S

OS:

No O/S

$986.35
