MicroTouch Digital Signage Series

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3

32" PCAP Touch Monitor (DS-320P-A1 & DS-320P-A2)

The DS-320P-A1 and DS-320P-A2 are 32" Full HD (1920 x 1080) projected capacitive, 10-touch digital signage solutions. Designed to encourage effective and efficient user collaboration and engagement, these displays bring a modern, interactive experience to your environment.

An ultra-slim build paired with advanced touch technology ensures every user interaction is effortless and precise. Whether you're deploying collaborative applications, way-finding capabilities, or custom branded kiosks, the DS-320P-A1/A2 solutions retain everything you expect from a large format touchscreen.

Featured Specifications

  • Size: 31.5" TFT LCD
  • Maximum Resolution: 1920 x 1080
  • Contrast Ratio: 1200:1
  • Aspect Ratio: 16:9
  • Brightness: 400 nits (w/o Touch), 360 nits (P-CAP)
  • View Angle: H: 178°, V: 178°
  • Video Port: 1 x VGA, 1 x DVI-D, 1 x HDMI
  • Warranty: 3 year

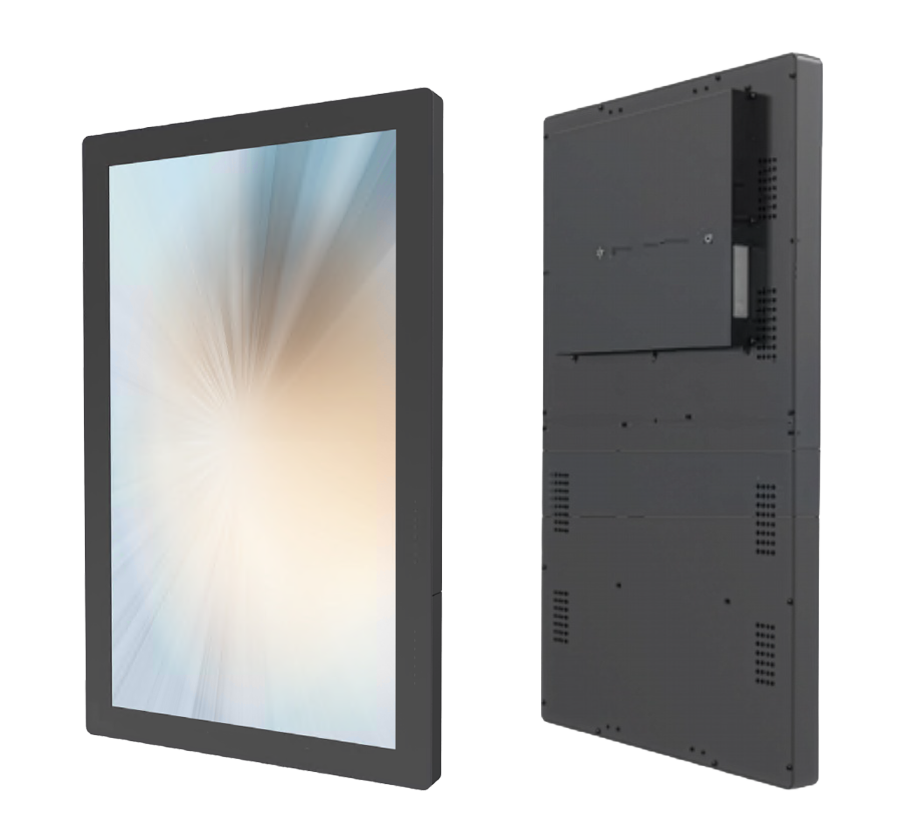

32 inch PCAP digital signage touch monitor front and back views

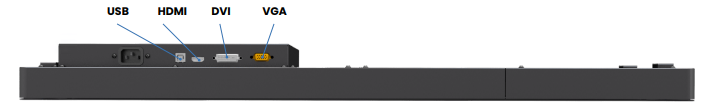

32 inch PCAP digital signage touch monitor ports view

43" PCAP Touch Monitor (DS-430P-B2)

The DS-430P-B2 is a 43" UHD (3840 x 2160) projected capacitive, 40-touch digital signage solution. It delivers market-leading picture quality and responsive touch performance, helping you create interactive experiences that drive engagement and collaboration.

Its slim build and refined touch technology ensure every interaction feels natural and accurate. From collaborative applications and way-finding to fully branded kiosks, the DS-430P-B2 is designed to retain everything you need in a large format touchscreen.

Featured Specifications

  • Size: 43" TFT LCD
  • Maximum Resolution: 3840 x 2160
  • Contrast Ratio: 1000:1
  • Brightness: 500 nits (w/o Touch), 450 nits (P-CAP)
  • View Angle: H: 178°, V: 178°
  • Video Port: 1 x HDMI 1.4, 1 x HDMI 2.0, 1 x DVI-I, 1 x DP 1.2
  • Warranty: 3 year
43 inch PCAP digital signage touch monitor front view

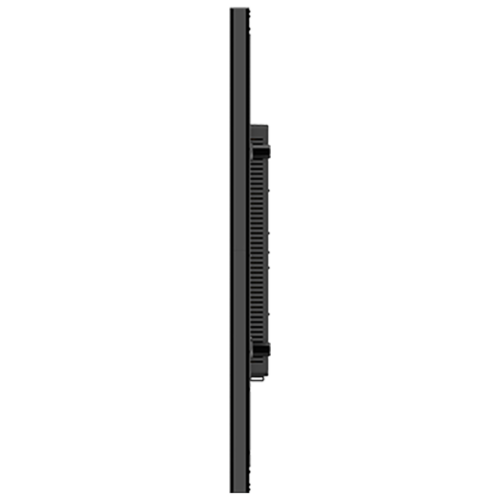

43 inch PCAP digital signage touch monitor side view

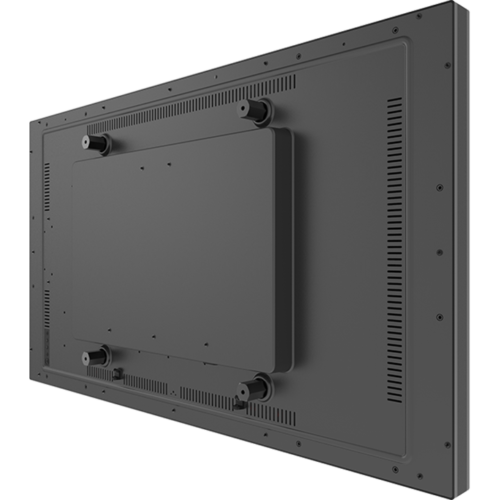

43 inch PCAP digital signage touch monitor rear view

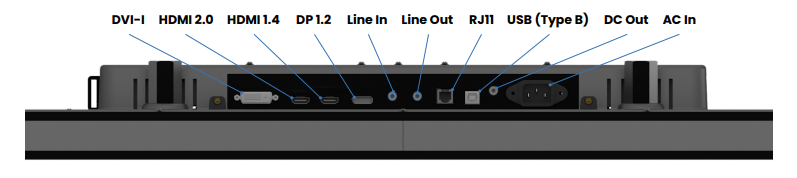

43 inch PCAP digital signage touch monitor ports view
32" Touch Monitor (DS-320P-A1)
Download
32" Touch Monitor (DS-320P-A2)
Download
43" Touch Monitor (DS-430P-B2)
Download

Shop Digital Signage Series Models

DS-320P-A2

MicroTouch, 31.5" Digital Signage, 1920X1080, VGA/DVI-D/HDMI, 10 Touch Points, PCAP, 400NITS, NO MOUNT, 400X200 MM VESA Compatible, 3 Year Warranty

$1453.75

DS-320P-A1

31.5" PCAP Digital Signage Series LCD Touch Monitor. IP65. USB for Touch. VGA, DVI-D, HDMI for Video. 1920x1080.

$1255.14

DS-430P-B2

MicroTouch, 43'' Digital Signage, 3840X2160, VGA/HDMI/DP/DVI, 40 Touch Points, PCAP, 500 NITS(NO TOUCH),450 NITS(PCAP), NO MOUNT, 400X400 MM VESA Compatible, 3 Year Warranty

$2343.75
