MicroTouch Desktop Series

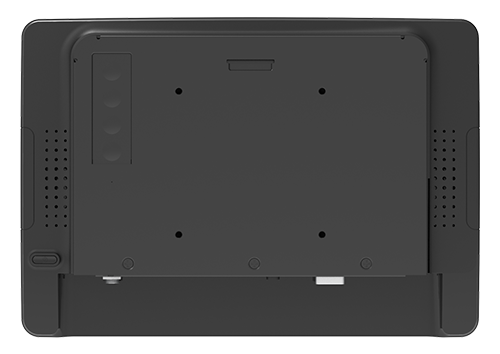

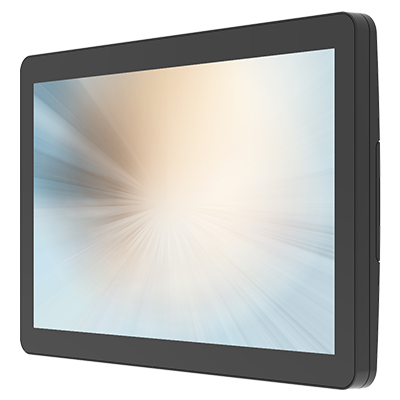

10.1" Touch Monitor
The ultra-modern, zero bezel design and compact footprint of the DT-100P-A1 make it an ideal choice for second displays, small point-of-service stations, and interactive in-aisle or end-cap signage.
With USB-C ALT DP mode, power delivery input, and 10-point projected capacitive touch, it streamlines cabling while delivering a smooth, consumer-like experience in a commercial-ready package.
Featured Specifications
- Size: 10.1" TFT LCD
- Maximum Resolution: 1280 x 800
- Contrast Ratio: 1000:1
- Aspect Ratio: 16:10
- Brightness: 350 nits (No Touch), 290 nits (P-CAP)
- View Angle: H: 160°, V: 160°

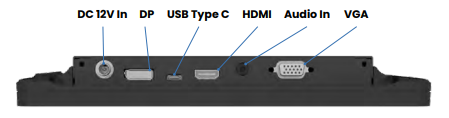

- Video Port: 1 x VGA, 1 x DP, 1 x HDMI
- Warranty: 3 year

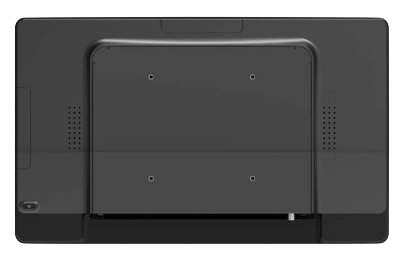

15.6" Touch Monitor
The ultra-modern, unique zero bezel and modular design of the DT-156P-B2 makes it a one-stop-shop solution with optional peripherals for added functionality. This 10-point touch, projected capacitive, Full HD 1920 x 1080 solution is great for retail point-of-sale or point-of-service with add-on features like 3-track MSR and a 2MP camera – with side and top mounting options.
The seamless bezel, advanced PCAP technology, and rounded aesthetic bridge the gap between daily consumer devices and commercial devices, creating a memorable end-user experience.
Featured Specifications
- Size: 15.6" TFT LCD
- Maximum Resolution: 1920 x 1080
- Contrast Ratio: 1000:1
- Aspect Ratio: 16:9
- Brightness: 450 nits (No Touch), 405 nits (P-CAP)
- View Angle: H: 178°, V: 178°
- Video Port: 1 x VGA, 1 x DP, 1 x HDMI
- Warranty: 3 year

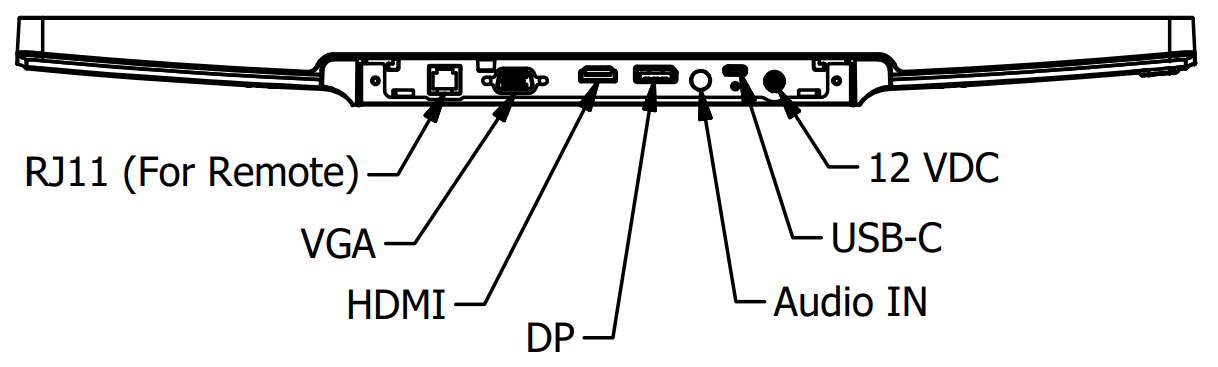

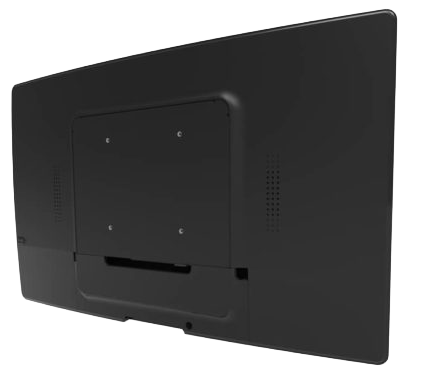

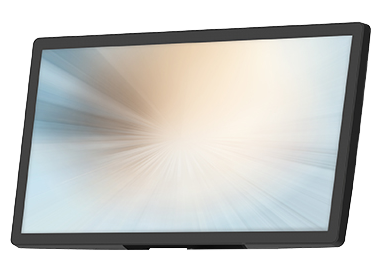

21.5" Touch Monitor
The DT-215P-B2 combines an ultra-modern, zero bezel design with a modular architecture that supports optional peripherals, making it a flexible one-stop solution for full-sized point-of-sale and point-of-service stations.
This 10-point PCAP touch display delivers Full HD 1920 x 1080 resolution and a seamless glass front, helping align the look and feel of commercial deployments with the consumer devices end-users are familiar with.
Featured Specifications
- Size: 21.5" TFT LCD
- Maximum Resolution: 1920 x 1080
- Contrast Ratio: 1000:1
- Aspect Ratio: 16:9
- Brightness: 250 nits (No Touch), 225 nits (P-CAP)
- View Angle: H: 178°, V: 178°
- Video Port: 1 x VGA, 1 x DP, 1 x HDMI
- Warranty: 3 year
Shop Desktop Series Models

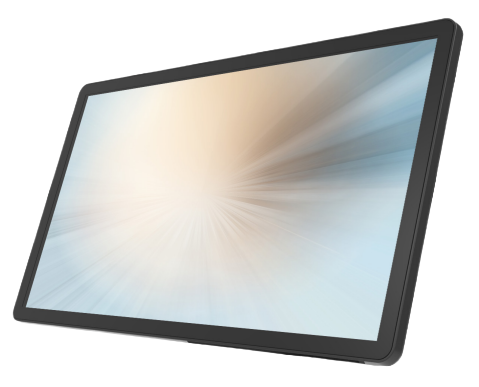

DT-156P-B2
15.6" PCAP Touch Monitor. Desktop Line. 1920 x 1080. VGA(DB-15), DP & HDMI for Video. USB for Touch. No Stand – Order SS-156-A1 Separately
Screen Size:
15.6"
Screen Size:
15.6"
DT-215P-B2
21.5" PCAP Touch Monitor. Desktop Line. 1920 x 1080. VGA(DB-15), DP & HDMI for Video. USB for Touch. No Stand – Order SS-156-A1 Separately.
Screen Size:
21.5"
Screen Size:
21.5"

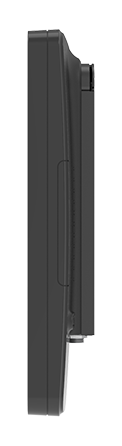

DT-100P-A1
10.1" PCAP Touch Monitor. Desktop Line. 1280 x 800. VGA(DB-15), DP/VGA/HDMI/USB-C for Video. USB-C for Touch. No Stand – Order MA-STAND-A2 Separately. Use DD-215-A1 if using 10.1" as Customer Facing Display.
Screen Size:
10.1"
Screen Size:
10.1"
Shop Desktop Series Accessories
CAM-000-A1
Microtouch Camera Module. 2MP. Designed specifically for the DT-156P-A1, DT-215P-A1, and IC-156P-AA2.
SS-156-A1
100X100 VESA Slim Stand for 15.6" and 21.5" Desktop Line.
DD-215-A1
Rear Display Mount. Front has VESA 100x100 with VESA 75x75 & 100x100 for Rear Display.
PS-3316005044F0
MicroTouch 50W Power Supply, Adapter 12V 50W
USB-5313120024FV
Cable USB C-C L2000 Black
PC-5330001214FI
Power Cable, AC Power Core 1.8M BK UL
USB-5313120025FV
USB Cable C-A L2000 Black
HDMI-5313118134FH
HDMI Cable V2.0 A-A L1800 Black, A.3
DP-5313118123FV
Display Port Cable, DP to DP, V2 31800 Black
VGA-5313118072FH
VGA Cable PC99 1.8M Black V1
MA-STAND-A2
Mach Stand (Gen 2). Dual-hinge tilting bracket with a 100 x 100 and 75 x 75 VESA mounting pattern.
