Star Micronics BSH-20B

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4

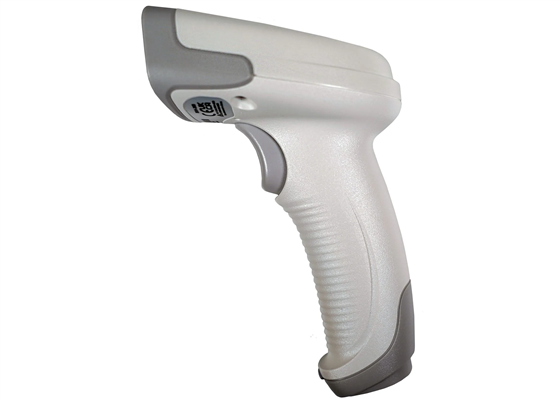

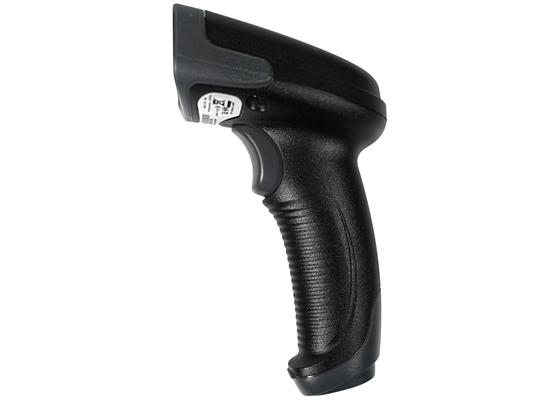

Wireless Bluetooth Barcode Scanner

A global provider of complete POS hardware solutions, Star Micronics is proud to offer the BSH-20B wireless Bluetooth 1D/2D handheld barcode scanner with a stylish design, long battery life, and reliable wireless transmission. It has six scanning modes and captures images on paper, uneven media, or onscreen.

Key Features

  • High-performance CPU captures high-density, high-volume, & distorted barcodes
  • Two forms of wireless communication: Bluetooth 5.0 or USB dongle (included)
  • 12 hours of continuous battery use
  • No driver downloads needed with iOS, Android, and Windows
  • 6 scanning modes (level, trigger, sense, continuous, pulse, batch)

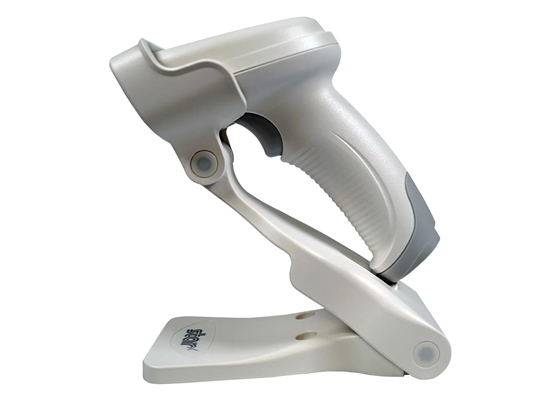

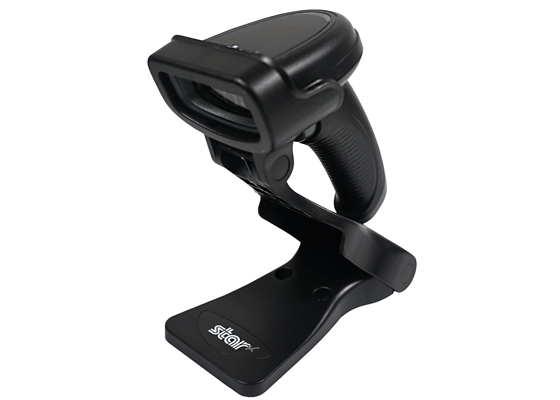

  • Smart scanner stand included
  • 2-year warranty included with options to extend via EXTEND-A-STAR® and/or SWAP-A-STAR®
  • Compatible with any POS software, including Star’s mCollection®
Image Sensor
640X480 CMOS
Illumination
White LED
Aiming
Red LED (625nm)
Symbologies
  • 2D: PDF417, Micro PDF417, QR Code, Data Matrix, Micro QR Code, Aztec
  • 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 25, Standard 25, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc.
Resolution
≥3mil (Code 128)
Typical Depth of Field
  • EAN-13: 50mm-260mm (13mil)
  • Code 39: 50mm-115mm (5mil)
  • PDF 417: 50mm-120mm (6.67mil)
  • Data Matrix: 35mm-125mm (10mil)
  • QR Code: 30mm-170mm (15mil)
Scan Angle
Pitch: ±60°, Roll: 360°, Skew: ±60°
Field of View
Horizontal 45°, Vertical 34°
Min Symbol Contrast
20%
Communication Modes
Synchronous mode, automatic batch mode, and manual batch mode
Radio Technology
Bluetooth 5.0
Communication Distance
Bluetooth: ≤50m (164 ft)
Memory Capacity
15000 pieces Code 128 (20 byte of each Code 128)
Battery
2400 mAh lithium-ion battery
Expected Charge Time
5.5 hours (with power adapter)
Expected Battery Life
12 hours of continuous operation (scan once per 6 seconds)
Dimensions (L×W×H)
144 (L) x 103 (W) x 69 (H) mm
Weight
177g
Colors
Black and White
Notification
Beep, LED indicator, Vibration
Humidity
5%~95% (non-condensing)
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Drop
1.5m
Sealing
IP42
Driver
Download
Quick Start Guide
Download
Spec Sheet
Download
User Manual
Download

Shop BSH-20B Models

37950940

Scanner, Handheld, 1D/2D Imager, Battery Powered, Bluetooth 5.0, Black, Includes Stand and USB Charging Cable

$202.28

37950950

Scanner, Handheld, 1D/2D Imager, Battery Powered, Bluetooth 5.0, White, Includes Stand and USB Charging Cable

$203.54

Shop BSH-20B Accessories

37951340

Extends standard warranty to total of four (4) years. Valid in US / CA / Latin America. See terms & conditions for details.

$73.00

37950580

Extends standard warranty to total of three (3) years. Valid in US / CA / Latin America. See terms & conditions for details.

$64.00

37950560

Adds next business day shipment via 2nd day air to standard two (2) year warranty. Valid in contiguous US only. See terms & conditions for details.

$82.00

37951320

Extends standard warranty to total of three (3) years and includes next business day shipment via 2nd day air. Valid in contiguous US only. See terms & conditions for details.

$89.00
