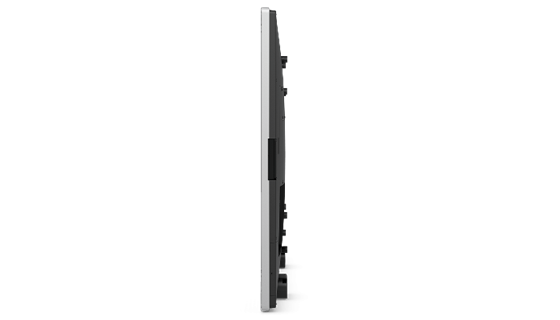

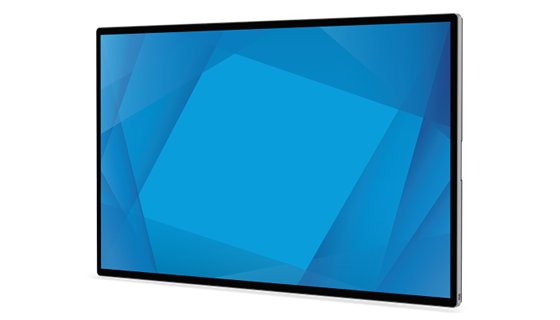

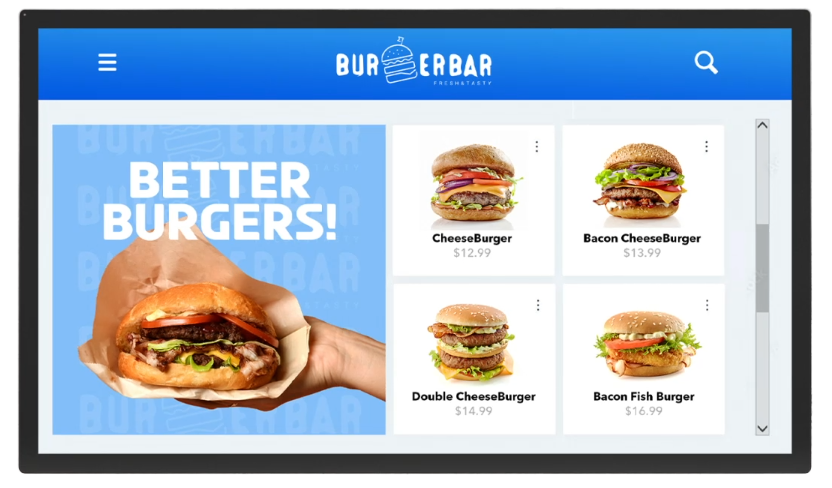

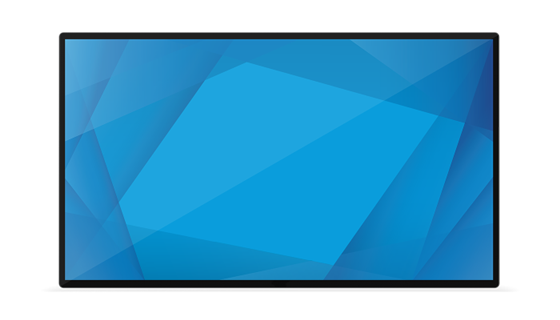

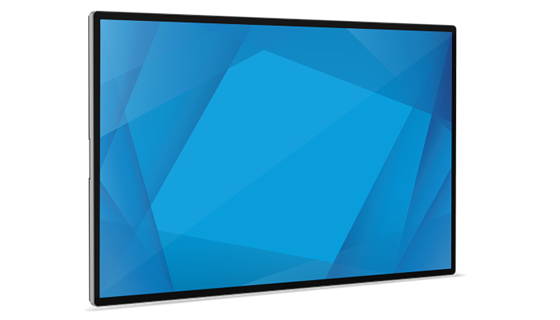

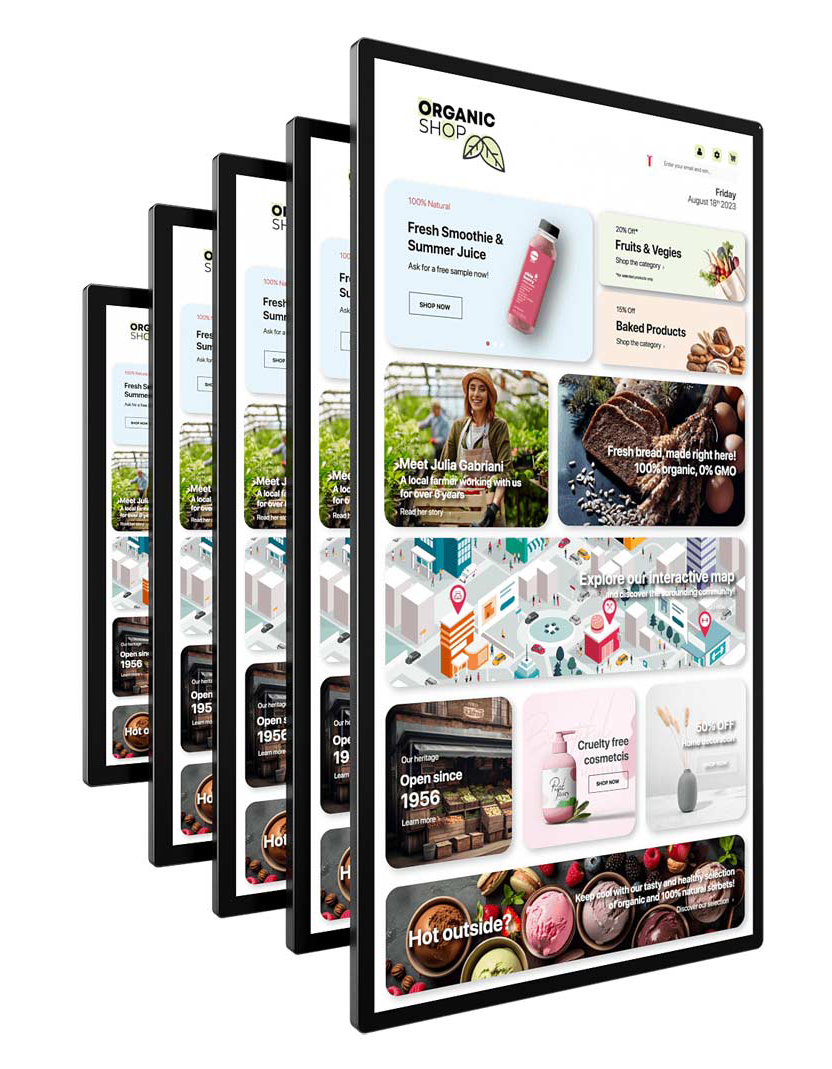

Elo 54L Series Touchscreen Signage Displays
The Elo 54L Series brings large-format interactive signage to life with a unified commercial platform available in 50-inch (5054L), 55-inch (5554L) and 65-inch (6554L) models.
Built for continuous operation in retail, self-service, wayfinding and healthcare environments, the 54L family combines 4K clarity, responsive touch and enterprise-ready management features.
4K UHD Visuals with Flexible Touch Technology.
Every 54L model delivers 3840 x 2160 @ 60Hz with a bright commercial panel and wide viewing angles for public-facing deployments.
- TouchPro PCAP: Up to 40 simultaneous touches with palm rejection.
- Infrared (IR): Up to 20 simultaneous touches.
- Brightness: 500 nits panel brightness (typical), with 430-450 nits typical with touch.
Engineered for 24/7 Commercial Environments.
- 24/7 operating duty cycle
- IK07 impact resistance
- UL 62368-1 safety certifications
- Ambient light sensor + auto wake features
- 50,000-hour demonstrated MTBF
Comprehensive Connectivity with Built-In IoT Control.
Deploy and manage displays at scale with integrated device management support for EloView, Crestron Connected V2 and MDM workflows via APIs.
- Inputs: 2 x HDMI 2.0, DisplayPort 1.4, USB-C (touch + video)
- Control/Network: RJ45 IoT LAN, RS232/MDC, optional OSD remote
- Compute integration: Elo Backpack, Intel NUC and BrightSign mounting options
Expand with Elo Edge Connect Accessories.
Add peripherals directly to the display edge with support for scanners, cameras, payment and RFID/NFC modules to tailor each deployment to the workflow.

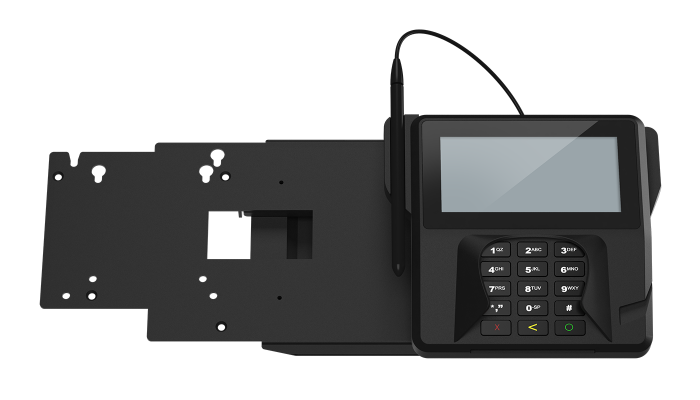

EMV Payments

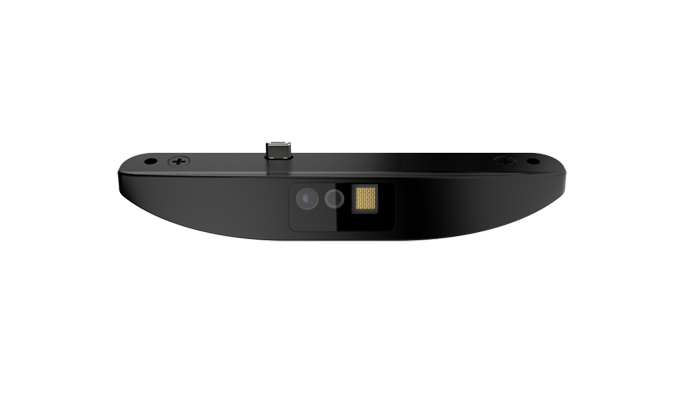

Barcode Scanners
RFID / NFC

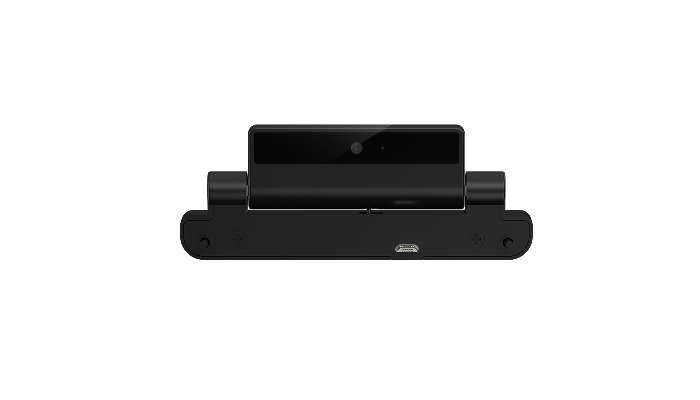

Cameras & More
Touch Through Support for Enclosed Installations.
Select 54L configurations support touch through for kiosk and glass overlay deployments, including operation with gloves.
- Up to 6 mm glass and up to 3 mm plastic overlays
- Glove support up to 1.4 mm thickness
- Ideal for protected retail, healthcare and high-traffic public installations
Choose the Right Size for Your Space.
5054L (50-inch)
- Active area: 43.14" x 24.27"
- VESA mount: 400 x 400 mm (M6)
- Power (typical): 99W ON
5554L (55-inch)
- Active area: 47.62" x 26.79"
- VESA mount: 400 x 400 (M6) and 600 x 600 (M8)
- Power (typical): 110-112W ON
6554L (65-inch)
- Active area: 56.2" x 31.6"
- VESA mount: 600 x 600 mm (M8)
- Power (typical): 160W ON
5054L / 50-inch Part Numbers
- E103538 - TouchPro PCAP, clear anti-friction
- E103738 - TouchPro PCAP, anti-glare
- E103937 - Infrared (IR), clear anti-friction
5554L / 55-inch Part Numbers
- E104131 - TouchPro PCAP, clear anti-friction
- E104315 - TouchPro PCAP, anti-glare
- E104520 - Infrared (IR), anti-glare
6554L / 65-inch Part Numbers
- E104723 - TouchPro PCAP, clear anti-friction
- E104912 - TouchPro PCAP, anti-glare
- E105106 - Infrared (IR), anti-glare
Backed by EloCareSM and a 3-Year Standard Warranty.
EloCare service and support options help keep deployments running smoothly with coverage from the teams that know your Elo products best.
Shop 54L Series Models
E103937
Elo 5054L 50-inch wide LCD Monitor, 4K UHD, HDMI 2.0 & DisplayPort 1.4, Infrared 20-Touch, Clear Anti-friction Glass, USB-C, Black
Size:
50"
Anti-Friction:
Anti-Friction
Touch Type:
Infrared 20-Touch
E104131
Elo 5554L 55-inch wide LCD Monitor, 4K UHD, HDMI 2.0 & DisplayPort 1.4, Projected Capacitive 40-Touch, Clear Anti-friction Glass, USB, Gray
Size:
55"
Anti-Friction:
Anti-Friction
Touch Type:
Capacitive
E104315
Elo 5554L 55-inch wide LCD Monitor, 4K UHD, HDMI 2.0 & DisplayPort 1.4, Projected Capacitive 40-Touch, Anti-Glare Glass, USB, Gray
Size:
55"
Anti-Glare:
Anti-Glare
Touch Type:
Capacitive
E104520
Elo 5554L 55-inch wide LCD Monitor, 4K UHD, HDMI 2.0 & DisplayPort 1.4, Infrared 20-Touch, Anti-Glare Glass, USB, Gray
Size:
55"
Anti-Glare:
Anti-Glare
Touch Type:
Infrared 20-Touch
E104723
Elo 6554L 65-inch wide LCD Monitor, 4K UHD, HDMI 2.0 & DisplayPort 1.4, Projected Capacitive 40-Touch, Clear Anti-friction Glass, USB, Gray
Size:
65"
Anti-Friction:
Anti-Friction
Touch Type:
Capacitive
E104912
Elo 6554L 65-inch wide LCD Monitor, 4K UHD, HDMI 2.0 & DisplayPort 1.4, Projected Capacitive 40-Touch, Anti-Glare Glass, USB, Gray
Size:
65"
Anti-Glare:
Anti-Glare
Touch Type:
Capacitive
E105106
Elo 6554L 65-inch wide LCD Monitor, 4K UHD, HDMI 2.0 & DisplayPort 1.4, Infrared 20-Touch, Anti-Glare Glass, USB, Gray
Size:
65"
Anti-Glare:
Anti-Glare
Touch Type:
Infrared 20-Touch
E103538
5054L 50-inch wide LCD Monitor, 4K UHD, HDMI 2.0 & DisplayPort 1.4, Projected Capacitive 40-Touch with Palm Rejection & Touch Thru, Clear Anti-friction Glass, USB-C, Black
E103738
Elo 5054L 50-inch wide LCD Monitor, 4K UHD, HDMI 2.0 & DisplayPort 1.4, Projected Capacitive 40-Touch with Palm Rejection & Touch Thru, Anti-Glare Glass, USB-C, Black
Size:
50"
Anti-Glare:
Anti-Glare
Touch Type:
Capacitive
