Elo TouchSystems 17L

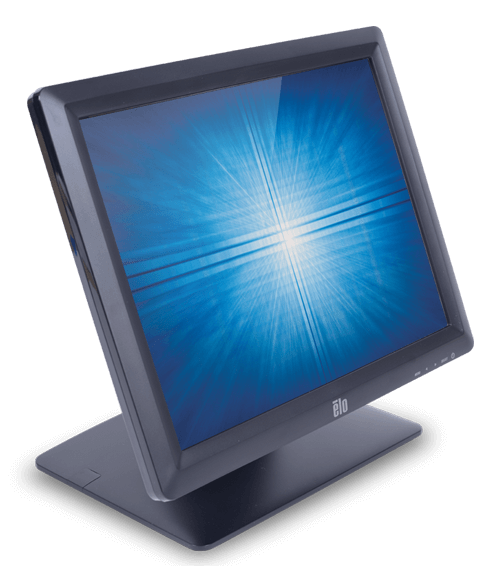

Elo 1517L Standard Format Touchscreen Monitor
The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged, built-for-touch design. Its stylish, thin and modern look—coupled with a retail-focused feature set—makes it an attractive solution for commercial touchscreen monitor needs.
The 1517L is well-suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.

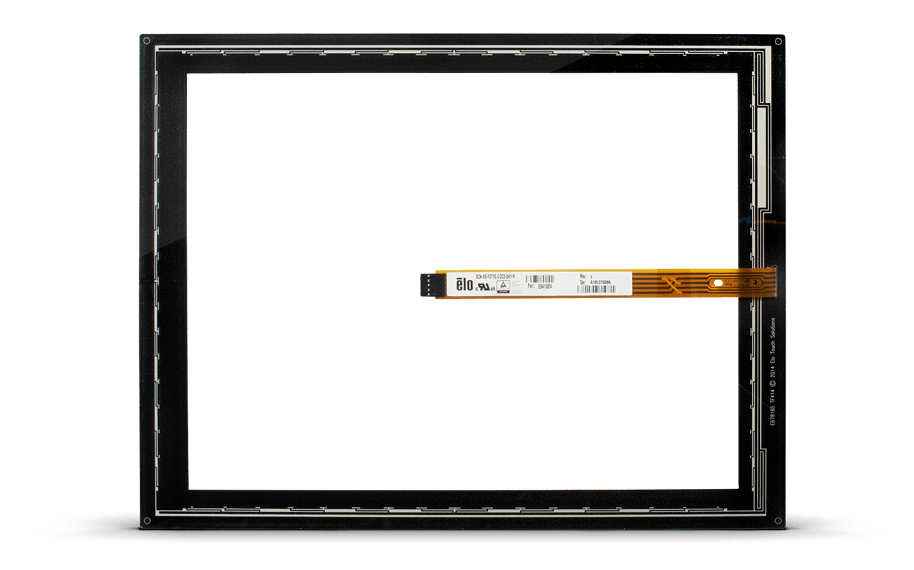

Integrated touch.
Designed specifically for high-traffic environments, the 1517L delivers dependable, built-for-touch performance in a sleek, space-saving footprint.
The sealed touchscreen helps protect against dirt, dust and liquids—ideal for retail counters and other public-facing deployments.
.png)
MSR ready.
The 1517L offers an optional three-track magnetic stripe reader (MSR). Programmable to either HID or Keyboard Emulation (USB only), it is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Flexible mounting.
The Elo 1517L offers multiple mounting options to ensure installation flexibility, including wall- and pole-mount via standard VESA mount patterns, as well as tabletop accommodations with the use of the desktop stand.
Capped through-mount holes on the base of the touchmonitor help ensure table-top security.
Key features at a glance.
- Sleek and thin design with built-for-touch reliability
- 60% Energy savings using LED technology
- Removable base and mounting options including VESA, wall and pole-mounting
- Typical power consumption: 12W, internal and external power options
- Flexible and space-saving
- Sealed touchscreen against dirt, dust and liquids
- USB and RS232 serial connections
- Three-year standard warranty
Shop 17L Models
E829550
1517L 15" IntelliTouch Touchscreen Monitor, Black. Clear Surface Treatment, No Bezel. VGA(DB-15) & HDMI for Video. Serial & USB for Touch. 1024 x 768 @ 60Hz, 75Hz.
Size:
15"
Surface Treatment:
Clear
Touch Type:
SAW (IntelliTouch)
E273226
1517L 15" IntelliTouch Touchscreen Monitor, Black. Anti-Glare Surface Treatment, No Bezel. VGA(DB-15) & HDMI for Video. Serial & USB for Touch. 1024 x 768 @ 60Hz, 75Hz.
Size:
15"
Surface Treatment:
Anti-Glare
Touch Type:
SAW (IntelliTouch)
E144246
1517L 15" AccuTouch Touchscreen Monitor, Black. Anti-Glare Surface Treatment, No Bezel. VGA(DB-15) & HDMI for Video. Serial & USB for Touch. 1024 x 768 @ 60Hz, 75Hz.
Size:
15"
Surface Treatment:
Anti-Glare
Touch Type:
Resistive (AccuTouch)
E596951
1717L 17-inch LCD (LED Backlight) Desktop, Projected Capacitive 10-touch, USB & RS232 Controller, Anti-glare, Zero-bezel, VGA video interface, Black, Worldwide
Size:
17"
Surface Treatment:
Anti-Glare
Touch Type:
PCAP (TouchPro)
E649473
1717 17-inch LCD (LED Backlight) Desktop, AccuTouch Single-touch, USB & RS232 Controller, Anti-glare, Zero-bezel, VGA video interface, Black, Worldwide
Size:
17"
Surface Treatment:
Anti-Glare
Touch Type:
Resistive (AccuTouch)
E017030
1717L 17-inch LCD (LED Backlight) Desktop, IntelliTouch (SAW) Single-touch, USB & RS232 Controller, Anti-glare, Zero-bezel, VGA video interface, Black, Worldwide
Size:
17"
Surface Treatment:
Anti-Glare
Touch Type:
SAW (IntelliTouch)
E077464
1717L 17-inch LCD (LED Backlight) Desktop, IntelliTouch (SAW) Single-touch, USB & RS232 Controller, Anti-glare, Bezel, VGA video interface, Black, Worldwide
Size:
17"
Surface Treatment:
Anti-Glare
Touch Type:
SAW (IntelliTouch)
E179069
1717L 17-inch LCD (LED Backlight) Desktop, IntelliTouch (SAW) Single-touch, USB & RS232 Controller, Clear, Zero-bezel, VGA video interface, Black, Worldwide
Size:
17"
Surface Treatment:
Clear
Touch Type:
SAW (IntelliTouch)
E877820
1717L 17-inch LCD (LED Backlight) Desktop, AccuTouch (Resistive) Single-touch, USB & RS232 Controller, Anti-glare, Bezel, VGA video interface, Black, Worldwide
Size:
17"
Surface Treatment:
Anti-Glare
Touch Type:
Resistive (AccuTouch)
E523163
1517L AccuTouch Touchscreen Monitor, Black. Anti-Glare Surface Treatment, Bezel. VGA(DB-15) & HDMI for Video. Serial & USB for Touch. 1024 x 768 @ 60Hz, 75Hz.
Size:
15"
Surface Treatment:
Anti-Glare
Touch Type:
Resistive (AccuTouch)
E344758
1517L IntelliTouch Touchscreen Monitor, Black. Anti-Glare Surface Treatment, Bezel. VGA(DB-15) & HDMI for Video. Serial & USB for Touch. 1024 x 768 @ 60Hz, 75Hz.
Size:
15"
Surface Treatment:
Anti-Glare
Touch Type:
SAW (IntelliTouch)
Shop 17L Accessories
E500356
1517L Integrated Magnetic Stripe Reader, Black, USB Interface
